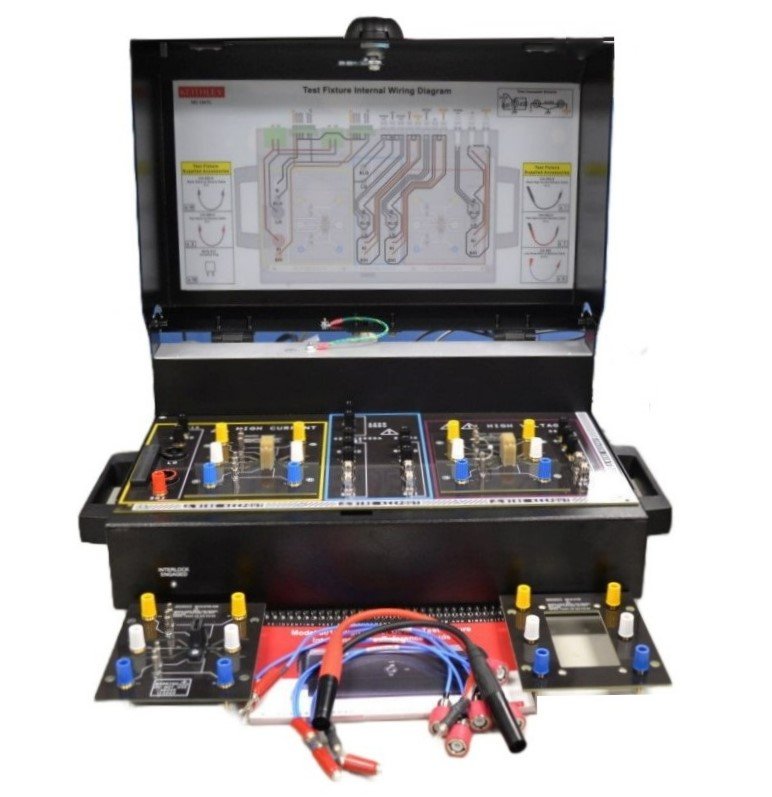

The Tektronix 8010 High Power Device Test Fixture enables safe, accurate characterization of packaged high-power electronic components rated up to 3000V and 100A. It accommodates SourceMeter SMU instruments in a mixed configuration—one high-voltage unit, up to two high-current units, and up to three low-power units—with integrated protection circuits shielding lower-voltage instruments from high-voltage faults. The fixture supports 2-, 3-, 4-, and 5-terminal device topologies and provides full interlock capability across up to six SourceMeter SMU instruments.
Technical Specifications
• Maximum Voltage: 3000V
• Maximum Current: 100A
• Operating Temperature: −30°C to +85°C
• Storage Temperature: −25°C to +85°C
• Humidity: 65% RH up to 35°C, derated 3% RH/°C above 35°C
• Dimensions: 108 mm H × 165 mm W × 140 mm D
• Weight: 1.45 kg
– Key Features
• Dedicated high-current (100A) and high-voltage (3000V) test sockets
• Integrated protection circuits for low-voltage SourceMeter SMU instruments against faults from high-voltage units
• Replaceable socket modules for TO-247, TO-220, axial lead, and custom socket applications
• Model 8011 Test Socket Kit available for TO-247 packages (40V, 50A)
• Rear-panel scope and thermal probe ports for simplified system integration
• Standard banana jumper connectors
– Compatibility & Integration
Supports mixed SourceMeter SMU configurations: one Model 2657A high-voltage instrument, one or two Model 2651A high-current instruments, and up to three units from Series 2600B or Model 4200-SCS low-power instruments. Compatible with Models 2611, 2612, 2635, and 2636. Pairs with Model 8010-DTB for 2-terminal axial-lead and 3-terminal TO-247 devices, and Model 8010-CTB for customizable test configurations.
