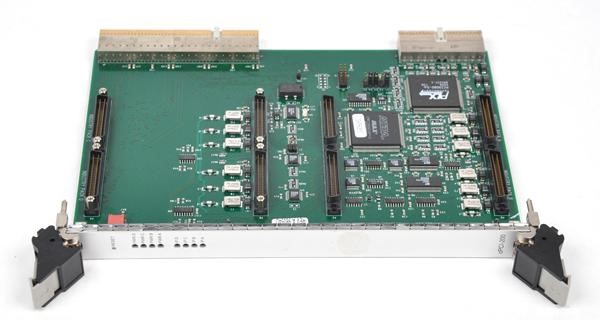

The Abaco Systems CPCI-200B-BP is a 6U CompactPCI carrier board that integrates up to four ANSI/VITA 4 compliant IndustryPack (IP) modules into cPCI systems. It bridges specialized I/O and processing functions through a high-speed 32-bit PCI interface, delivering flexible expansion for embedded and industrial applications. The board features a PLX PCI9080 controller and Altera FPGA logic for configurable interrupt mapping, making it ideal for system integrators and OEMs deploying modular I/O solutions in space-constrained environments.
Technical Specifications
Form Factor & Connectors
• 6U CompactPCI (160 mm × 233 mm)
• CompactPCI J4/J5 connectors for host interface
• Rear I/O support with optional BIO-3 and BIO-4 transition modules
IndustryPack Interface
• Four IP module slots supporting single-wide and double-wide configurations
• 8 MB memory space per IP site
• Software-selectable IndustryPack clock: 8 MHz to 32 MHz per slot
• Int0* and Int1* interrupt support per slot
• Full I/O, ID, INT, and MEM space support
PCI Architecture
• PICMG 2.0 R3.0 cPCI Core Specification compliant
• 32-bit PCI host address space for linear memory, I/O, and ID mapping
• PLX PCI9080 bridge controller
• Altera FPGA for fully configurable PCI interrupt vector assignment
• Automatic 3.3 V or 5.0 V signaling level handling
• INTA# interrupt generation
• 64 MB carrier board memory space
Power Requirements
• +5 VDC: 250 mA typical
• +12 VDC: 10 mA typical
• −12 VDC: 10 mA typical
• Resettable 2.5 A @ 20°C fuse (+5 VDC)
• Resettable 2.0 A @ 20°C fuses (+/−12 VDC)
• Module-specific power draw additional
Environmental
• Operating: 0°C to 70°C
• Storage: −40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Weight: 0.32 kg
– Key Features
• Fully configurable interrupt mapping via FPGA logic
• Per-slot clock rate selection for timing-critical applications
• Dual 3.3 V/5.0 V PCI bus compatibility
• Modular expansion supporting mixed IP module types
• Low power consumption enabling passive thermal designs
– Typical Applications
• Industrial process control and data acquisition
• Embedded test and measurement systems
• Military and aerospace signal processing
• Distributed I/O expansion in cPCI backplanes
– Compatibility & Integration
The CPCI-200B-BP conforms to VITA-4 IndustryPack Logic Interface Specification and PICMG 2.0 cPCI standards, ensuring interoperability with standard IP modules and cPCI host systems. Front or rear I/O configurations are available as order options.
