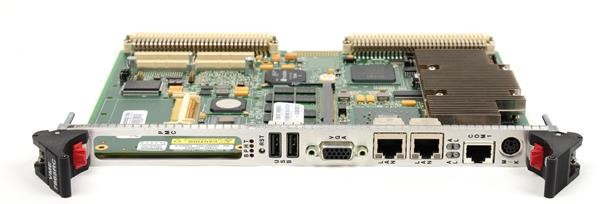

The Abaco Systems V7865-230003 is a VME Single Board Computer engineered for high-reliability defense, aerospace, and homeland security applications. This passively cooled single-slot Eurocard form factor board delivers Intel Core Duo or Core 2 Duo processing at speeds up to 2.16 GHz, paired with the Intel 945GM/945GME chipset and a 667 MHz front-side bus. The V7865 operates as a system controller or peripheral CPU within multi-CPU VMEbus systems, compliant with VMEbus Specification Rev. C.1.
Technical Specifications
• Processor: Intel Core Duo / Core 2 Duo at 1.66 GHz, 2.0 GHz, or 2.16 GHz
• L2 Cache: Up to 4 MB with Advanced Transfer Cache Architecture
• Chipset: Intel 945GM/945GME
• System & Memory Bus: 667 MHz
• Memory: Up to 3 GB DDR2 SDRAM (1 GB onboard); up to 4 GB bootable CompactFlash
• Expansion: 1x PCI-X PMC site via transparent PCI-to-VME bridge
– Key Features
• VMEbus Specification Rev. C.1 compliance for standardized backplane integration
• Passive cooling eliminates mechanical fan dependencies in deployed systems
• Dual Gigabit Ethernet ports enable redundant network paths
• Four USB 2.0 ports plus one Serial ATA interface support peripheral connectivity
• Dual RS-232/422 serial ports for legacy device integration
• Multiple I/O options accommodate external sensor and instrument connections
• Commercial through rugged, extended temperature variants available
– Operating System Support
The V7865 executes Microsoft Windows XP and multiple Linux distributions, providing operating system flexibility for mission-specific requirements.
– Typical Applications
Advanced defense systems, aerospace platforms, and homeland security infrastructure requiring high-performance single-board computing with VME backplane integration and passive thermal management.
– Compatibility & Integration
Full VMEbus Rev. C.1 compliance ensures interoperability within existing VME systems. The transparent PCI-to-VME bridge streamlines integration of PCI-X peripheral modules. Hardware Reference Manual documentation supports deployment and customization.
