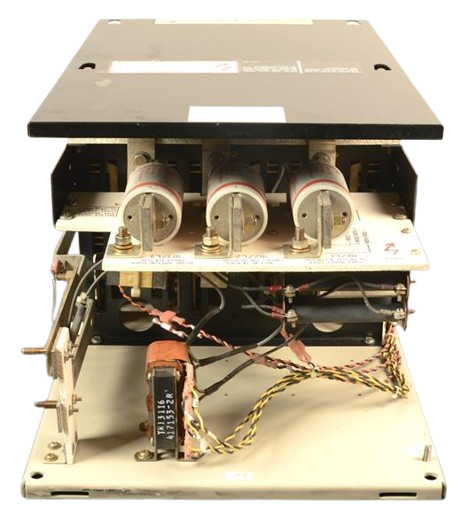

The ABB/Baldor/Reliance 803612-RE S6R-DIG DSC Power Module is an industrial-grade AC to DC power conversion unit designed for distributed control system applications. This three-phase power module accepts 230V AC input and delivers 240V DC output, supporting power distribution across automation and motor control systems rated 15–20 HP and 25–75 HP applications.
Technical Specifications
Input Power
• Voltage: 230V AC
• Current: 224A maximum
• Frequency: 50/60 Hz
• Configuration: 3 Phase
Output Power
• Voltage: 240V DC
• Current: 265A maximum
Model Identification
• Part Number: 803612-RE
• Alternate Designation: S6R-DIG
• Associated Assembly: 803612-RE
• Cross-Reference: 30312-RE
– Key Features
The module integrates into DSC (Distributed Control System) frameworks common in industrial automation. Input power conditioning is critical: the connected supply must maintain power factor ≤0.99 with compensation systems designed to prevent overcompensation. An input line reactor (3% impedance) is recommended when operating under noise-prone conditions—specifically intermittent noise spikes exceeding 2000V, frequent voltage dips, generator operation, systems with power factor correction capacitors, or multiple drives sharing a short common power supply bus bar.
Terminal block wiring accommodates specified screw sizes and wire gauges per module documentation standards.
– Typical Applications
The 803612-RE serves motor control and power distribution in industrial automation environments where AC-to-DC conversion and system-level power management are required. Applications span 15–20 HP and 25–75 HP motor control circuits within larger distributed control architectures.
– Compatibility & Integration
The S6R-DIG designation positions this module within DSC control frameworks typical of process automation, industrial motor control, and coordinated multi-axis systems. Integration within larger system architecture follows standard power distribution practices for modular control platforms.
