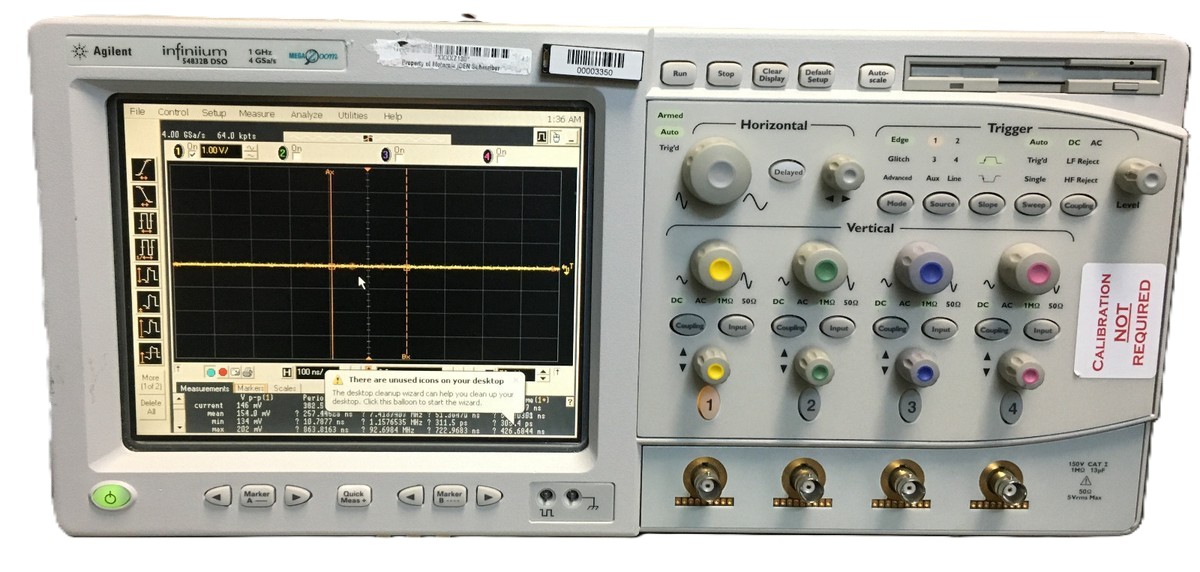

The Agilent/HP Infinium 54832B is a 1 GHz digital oscilloscope engineered for signal analysis requiring high bandwidth and deep memory acquisition. This four-channel instrument captures complex waveforms at up to 4 GSa/s with standard memory of 4 Mpts (2 Mpts per channel), expandable to 128 Mpts. The 54832B resolves transient events as narrow as 250 ps without peak detect modes, making it suitable for detailed time-domain characterization.

The instrument combines an intuitive analog-style front panel with a Windows-based GUI supporting drag-and-drop measurements, waveform math functions, and intensity/color-graded persistence visualization. Its MegaZoom deep memory architecture delivers fast waveform update rates during extensive data acquisition. An 8.4-inch high-resolution color TFT display with anti-glare coating supports real-time signal monitoring and analysis.

Technical Specifications

• Bandwidth: 1 GHz
• Sample Rate: Up to 4 GSa/s
• Analog Channels: 4
• Acquisition Memory: 4 Mpts standard (2 Mpts per channel); optional up to 128 Mpts; 16 Mpts half-channel or 8 Mpts full-channel with Option 080
• Minimum Capture Width: 250 ps
• Input Impedance: 1 MΩ (standard); 2.58 kΩ (auxiliary trigger input with 50 Ω back-termination)
• Display: 8.4-inch color TFT with anti-glare coating
• Storage: ≥20 GB hard drive for setups and results
• Weight: 16.4 kg (36.1 lbs.)
• Height: 216 mm (8.5 in)

– Key Features

• Waveform math: Add, Average, Differentiate, Divide, FFT Magnitude, FFT Phase, Integrate, Invert, Magnify, Min, Max, Multiply, Subtract, Versus, and Measurement Trend
• QuickMeas+ automated measurement functions
• High and low-pass filter functions
• Intensity and color-graded persistence modes for waveform distribution analysis
• AutoProbe interface for passive, active, and differential probes

– Compatibility & Integration

• LAN: 10/100 Mbps Ethernet with GPIB over LAN capability
• USB 2.0 support (with applicable options)
• Web-enabled remote control and email on trigger
• Built-in CD-ROM drive
• Safety: IEC1010-1 +A2, CSA C22.2 No.1010.1, UL 3111 certified
