The Agilent/Keysight 11652A is a 50-ohm BNC reflection-transmission calibration kit designed for RF network characterization from 0.1 to 110 MHz. This kit provides characterized standards essential for accurate calibration of network analyzers, enabling both swept and single-frequency measurements across its operating range.
Technical Specifications
• Frequency Range: 0.1 MHz to 110 MHz
• Impedance: 50 Ohms
• Connector Type: BNC
– Key Features

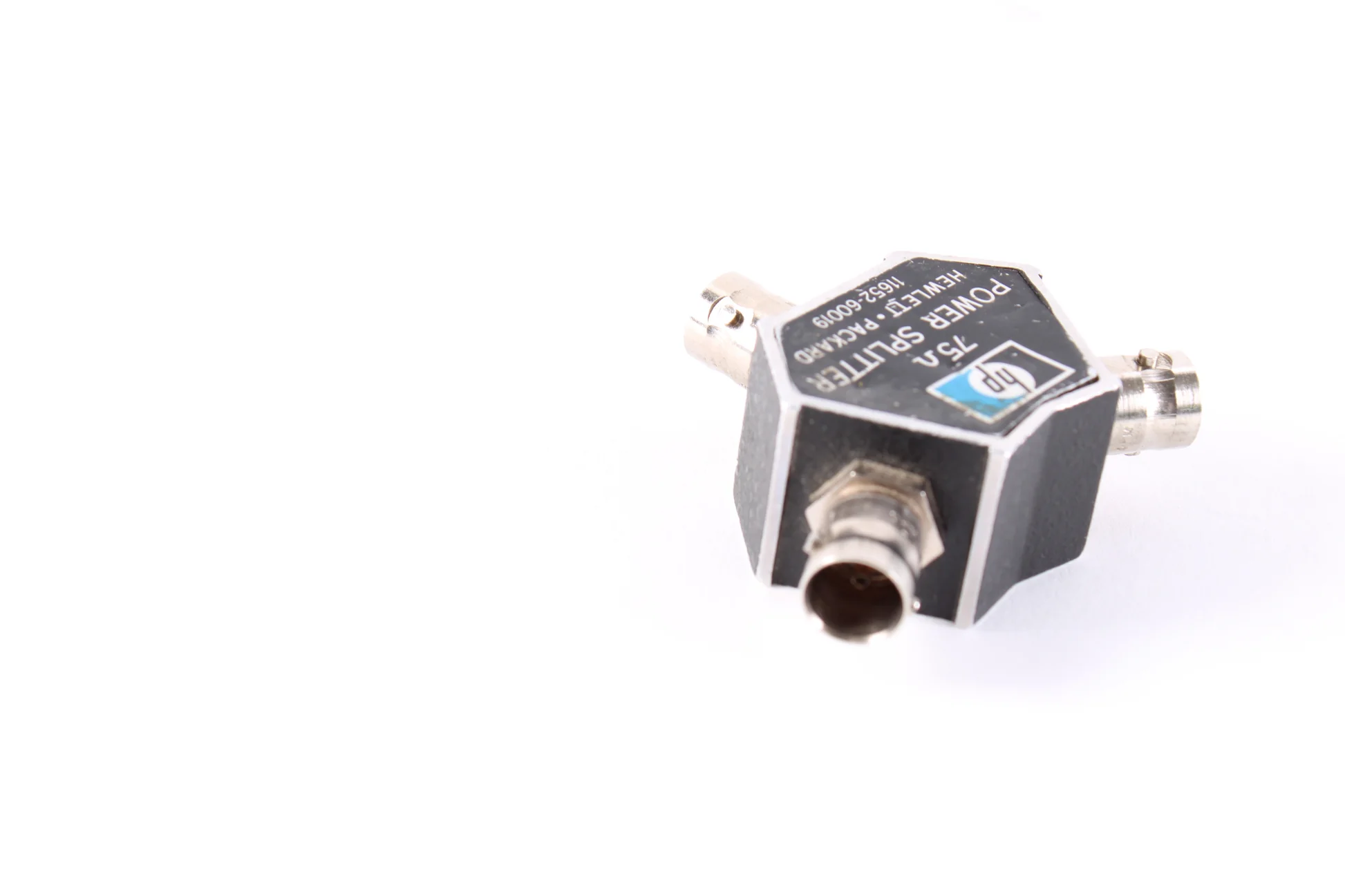

The 11652A includes a power splitter for signal division, an 8721A directional bridge for reflected power measurement and impedance characterization, and a precision 50-ohm termination load. A calibrating short standard enables system calibration through signal reflection. Three BNC adapters and four matched, low-leakage cables complete the kit, minimizing signal loss and reflection during test procedures.
– Typical Applications
This kit is particularly suited for swept and single-frequency measurements in RF network analysis. It serves laboratory and field environments where precise characterization of network parameters and equipment calibration accuracy are required within the VLF and HF bands.
– Compatibility & Integration
The 11652A integrates with the HP 8407A Network Analyzer for swept measurements and the HP 8405A Vector Voltmeter for single-frequency operations. The kit is discontinued but remains fully supported by Keysight, with repair and calibration services available through Keysight Service Centers.
