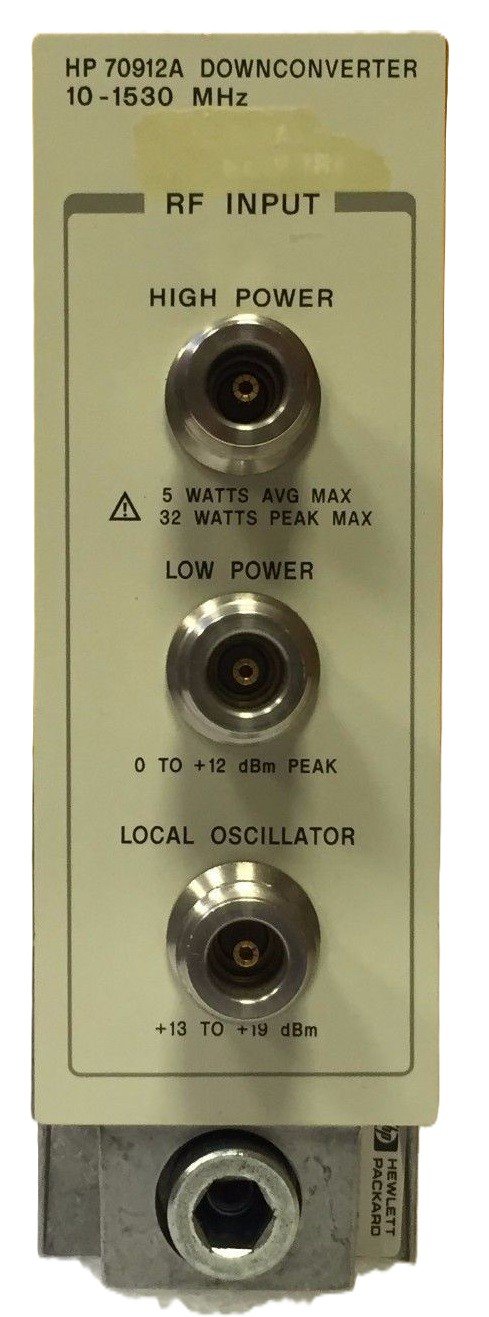

The Agilent/Keysight 70912A RF Section Module is a downconverter that extends the frequency measurement capability of network analyzers by translating RF input signals to a lower intermediate frequency (IF) for analysis and processing. This module operates across 10 MHz to 1530 MHz or 10 MHz to 1500 MHz and integrates into the 70000MMS series modular test equipment platform.
Technical Specifications
• Frequency Range: 10 MHz to 1530 MHz or 10 MHz to 1500 MHz
• Weight: 1.2 lbs
– Key Features
• RF-to-IF downconversion architecture for extended measurement range
• Direct integration with 70000MMS series instrumentation
• Compact form factor optimized for modular system deployment
– Typical Applications
• Network analyzer frequency extension beyond native instrument bandwidth
• RF signal downconversion for intermediate frequency analysis
• High-frequency characterization in modular measurement systems
– Compatibility & Integration
The 70912A is designed as a plug-in module for the Agilent/Keysight 70000MMS series. Integration leverages the modular bus architecture of the 70000MMS platform, enabling straightforward insertion and control within the host system. The module interfaces with the analyzer’s signal path to provide downconversion functionality without requiring external hardware bridges.
Note: This product is no longer sold by Keysight.
