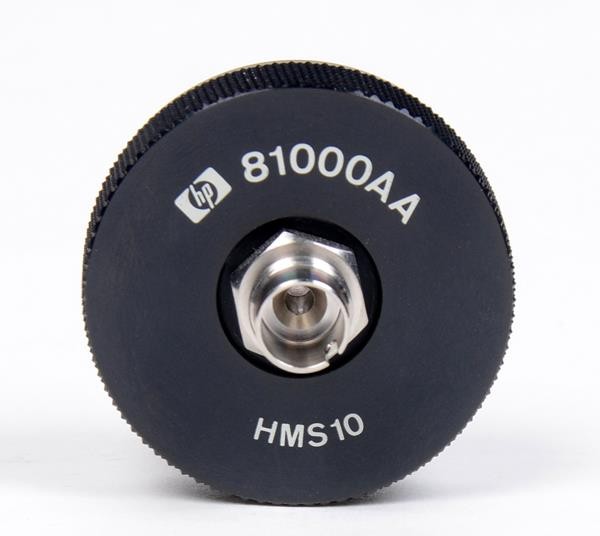

The Agilent/Keysight 81000AA is a fiber optic connector adapter that enables connection of Diamond HMS-10 terminated pigtails to Agilent and Keysight optical test heads. Engineered for the 815xxx and 816xxx series optical head platforms, this adapter delivers the precision interface demanded in optical testing environments. The threaded mounting design provides secure, repeatable attachment to 5mm optical heads.
Technical Specifications
• Model: 81000AA
• Connector Type: Diamond HMS-10
• Head Form Factor: 5mm optical heads
• Mounting: Threaded
• Series: 81000 Series Optical Head Connector Adapters
– Key Features
• Diamond HMS-10 input connector for direct pigtail termination
• Threaded design ensures stable mechanical coupling
• High precision construction for demanding optical measurement applications
• Part of an extensive 81000 Series adapter family supporting multiple connector standards
– Typical Applications
• Fiber optic test and measurement setups requiring Diamond HMS-10 termination
• Connection of pre-terminated optical pigtails to laboratory optical heads
• Integration into automated optical testing systems
– Compatibility & Integration
The 81000AA is compatible with Agilent/Keysight 815xxx and 816xxx series optical heads featuring 5mm form factors. It integrates within the 81000 Series adapter ecosystem, which includes FC/PC/SPC/APC (81000FA), NEC D4 (81000GA), SC/PC/APC (81000KA), E-2000 (81000PA), DIN 47256/4108 (81000SA), ST (81000VA), and LC (81003LA) connector options. This modular approach enables rapid reconfiguration across different connector architectures without replacing the optical head assembly.
