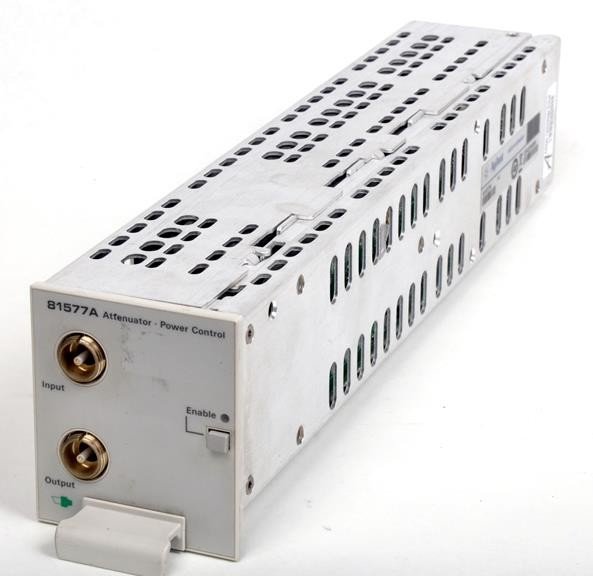

The Keysight 81577A Optical Attenuator is a dual-slot plug-in module for the Lightwave Solution Platform that delivers precise attenuation control across the C- and L-bands. It combines variable optical attenuation, integrated power metering, and automated power control in a single module, enabling accurate characterization of optical components and systems during development and manufacturing.
Technical Specifications
• Attenuation Range: 0 dB to 60 dB
• Attenuation Resolution: 0.001 dB
• Attenuation Accuracy: < 0.1 dB
• Repeatability: < 10 mdB
• Wavelength Range: 1250 nm to 1650 nm (single mode)
• Wavelength Flatness: < 0.05 dB
• Maximum Input Power: 2 W (33 dBm)
• Return Loss: Typically 57 dB
• Operating Temperature: 5°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 15% to 95% (non-condensing)
• Maximum Operating Altitude: 2000 m
– Key Features
• Power Control: Directly sets output power level with automatic compensation for input fluctuations
• Integrated Shutter: Enables power meter zeroing, equipment protection, and channel drop simulation
• Low Signal Distortion: Minimized PDL, PMD, and CD for accurate measurements
• Built-in Power Meter: Facilitates real-time power monitoring and control feedback
• Offset Calibration: Corrects for connector and patch cord losses; wavelength-dependent offset pairs stored for wavelength-specific compensation
• Built-in Calibration: Reduces measurement uncertainty and accelerates system calibration
– Typical Applications
• Optical network component characterization
• Telecommunications and data communications testing
• Research and development of optical systems
• Manufacturing test and validation
– Compatibility & Integration
Plug-in module for Keysight Lightwave Solution Platform mainframes including 8163A/B, 8164A/B, and 8166A/B. The 8166A/B supports up to eight dual-slot modules. Angled connector interfaces; optical connectors sold separately.
