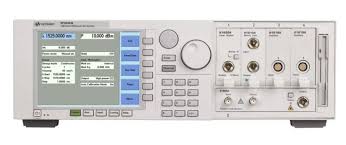

The Keysight 81606A is a tunable laser module engineered for the 8164B lightwave measurement system, delivering precision wavelength control across the 1240–1380 nm band. It provides sub-picometer tuning repeatability, exceptional spectral purity, and bidirectional sweep speeds up to 200 nm/s—40 times faster than predecessor models. The module excels in component characterization, system validation, and optical network testing, where absolute accuracy and dynamic range are critical.
Technical Specifications
• Wavelength Range: 1240–1380 nm (standard configuration; additional bands available via options)
• Sweep Speed: Up to 200 nm/s bidirectional
• Maximum Output Power: > +13 dBm peak (Option 113); > +12 dBm peak (other configurations); user-adjustable to 0 dBm minimum
• Absolute Wavelength Accuracy: ±1.5 pm typical
• Wavelength Repeatability: ±1 pm typical during two-way sweeps to 200 nm/s
• Spectral Width: 50 dB
• Signal-to-Spontaneous Emission Ratio: ≥ 80 dB/nm typical
• Tuning Repeatability: Sub-picometer
• Optical Connector: FC/PC (angled contact option available)
• Electrical Connectors: Two BNC connectors (input/output); maximum ±6 V per connector
– Key Features
• 4-fold improvement in absolute wavelength accuracy versus earlier generations
• 15 dB greater dynamic range compared to predecessor models
• 10 dB reduction in source spontaneous emission
• Bidirectional sweep capability with sub-picometer repeatability across full tuning range
• Compact module design fits into the bottom back-loadable slot of the 8164B mainframe
– Typical Applications
• Optical component characterization and validation
• Wavelength-dependent system testing in telecommunications and networking
• Photonic research requiring high spectral purity and tuning precision
• Automated wavelength sweeping and parametric testing
– Compatibility & Integration
The 81606A integrates into the Keysight 8164B Lightwave Measurement System mainframe. It is compatible with current 81600B laser commands and operates under the N7700A photonic application suite software.
