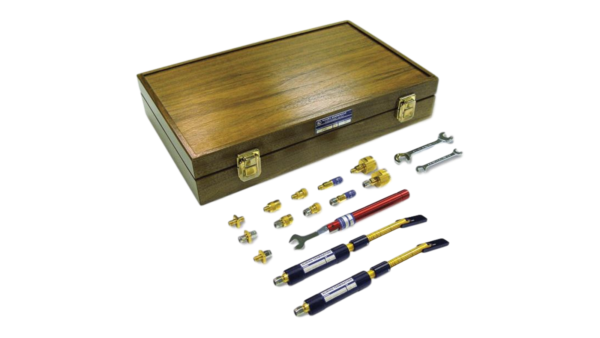

The Agilent/Keysight 85056KE02 is a mechanical calibration kit for systematic error characterization of Keysight network analyzers using 2.92 mm SOLT standards. It enables accurate 2-port calibration across DC to 40 GHz and integrates directly with PNA family VNAs via supplied standard definitions on USB.
Technical Specifications
• Frequency Range: DC to 40 GHz
• Calibration Method: 2.92 mm SOLT (Short, Open, Load, Thru)
• Characteristic Impedance: 50 Ω
• Connector Type: 2.92 mm primary; NMD 2.4 mm test port interface
– Key Features
• Fixed loads for SOLT calibration standards
• Precision standard devices for systematic error characterization
• Adapter set for NMD 2.4 mm to 2.92 mm conversion: one female-to-female and one female-to-male transition adapter
• Three 2.92 mm in-series adapters for test port extension
• Calibrated wrenches: 5/16 inch, 7/16 inch open-end, and 2.92 mm torque wrench
• Standard definitions preloaded on USB stick for PNA family integration
• Carrying case for transport and storage
– Typical Applications
Designed for VNA users requiring high-frequency SOLT calibration at 2.92 mm connector interface. Suits measurement campaigns from DC through millimeter-wave frequencies up to 40 GHz. Adapter set enables use on instruments equipped with NMD 2.4 mm test ports.
– Compatibility & Integration
Primary compatibility: Keysight PNA family network analyzers. Kit provides ready-to-use standard definitions for PNA VNAs via included USB media. Users must supply their own 2.92 mm test port cables for transmission measurements. Adapters are application-specific to NMD 2.4 mm test ports and are not suitable for general-purpose use.
