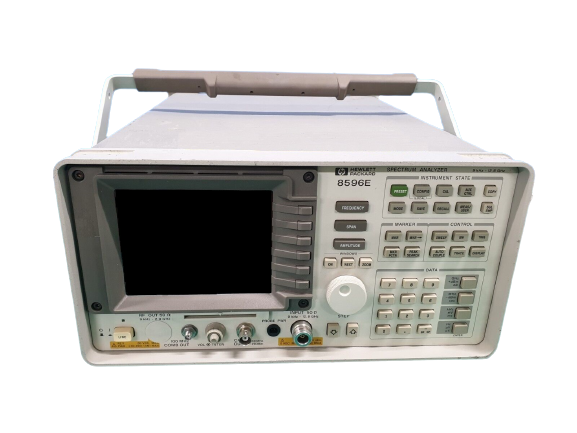

The Agilent/Keysight 8596EM EMC Analyzer is a stand-alone instrument for electromagnetic compatibility testing across 9 kHz to 12.8 GHz. It combines spectrum analysis with specialized EMC measurement capabilities, eliminating the need for external computers or automation software. The analyzer performs radiated and conducted EMI detection, measurement, and documentation while supporting precompliance testing to commercial and MIL-STD requirements for devices with clock frequencies up to 2.5 GHz.
Technical Specifications
• Frequency Range: 9 kHz to 12.8 GHz
• Maximum Clock Frequency (Precompliance Tests): 2.5 GHz
• Resolution Bandwidths (EMI): 9 kHz, 120 kHz (6 dB); 30 Hz, 100 Hz, 300 Hz (3 dB); 200 Hz (6 dB)
• Detectors: Peak, Quasi-Peak, EMI Average, RMS Average
• Limit Lines: Simultaneous comparison against two regulatory limits plus measurement margin
• Amplitude Correction: Automatic correction for antenna, amplifier, and cable losses
– Key Features
• Dual modes—EMI analysis and spectrum analysis—switchable via front-panel keys
• Fully integrated automation with predefined CISPR band setup keys
• Predefined measurement routines for automatic frequency range sweeps
• Built on 8590 E-series spectrum analyzer architecture
• ROM-based measurement personalities for application-specific configuration (EMC, Cable TV, RF communication)
• Split-screen display capability with zoom functionality
– Typical Applications
• EMI emissions precompliance testing
• Electromagnetic interference diagnostics and documentation
• Radiated and conducted emissions measurement
• Compliance verification against commercial standards and MIL-STD requirements
• Spectrum analysis and interference identification
– Compatibility & Integration
• Interfaces: RS-232, parallel printer, optional GPIB/HPIB card
• Tracking Generator: Available as Option 010 for stimulus-response measurements and shielding effectiveness/immunity testing
• Standalone Operation: No external computer required for automated EMC measurements
