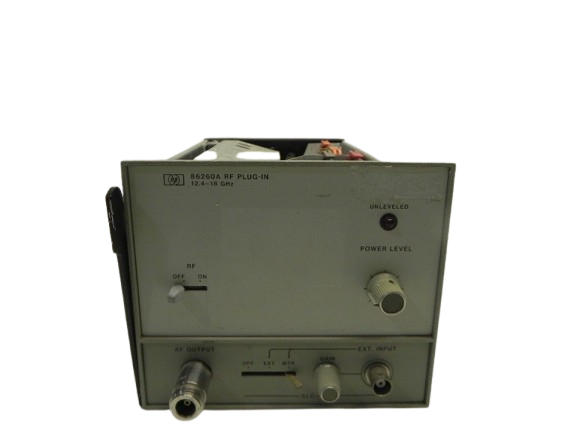

The Agilent/Keysight 86260A is an RF plug-in module engineered to extend the signal generation capabilities of 8620A and 8620B mainframe systems. Operating across the 12.4 GHz to 18.0 GHz band, this unit delivers calibrated RF output suitable for precision measurement and device characterization in microwave test environments.
Technical Specifications
• Frequency Range: 12.4 GHz to 18.0 GHz
• Maximum Leveled Power: +6 dBm
• Harmonic Output: -30 dB
• Spurious Output: -60 dB
• Residual FM: < 30 kHz peak
• Weight: Approximately 10–15 lbs
• Dimensions: Approximately 12 × 10 × 8 inches (or 14 × 8 × 8 inches)
– Key Features
• Modular plug-in architecture for flexible system configuration
• Leveled power output maintains amplitude stability across the operating band
• Low spurious and harmonic content (-60 dB and -30 dB respectively) reduces test measurement uncertainty
• Minimal residual frequency modulation ensures signal purity for demanding applications
– Typical Applications
• Wireless communications testing
• Radar system testing
• RF and microwave component characterization
– Compatibility & Integration
The 86260A integrates directly into Agilent/Keysight 8620A and 8620B mainframe systems, functioning as a self-contained RF source module within the parent instrument's architecture. No external signal conditioning or amplification is required for standard test configurations.
