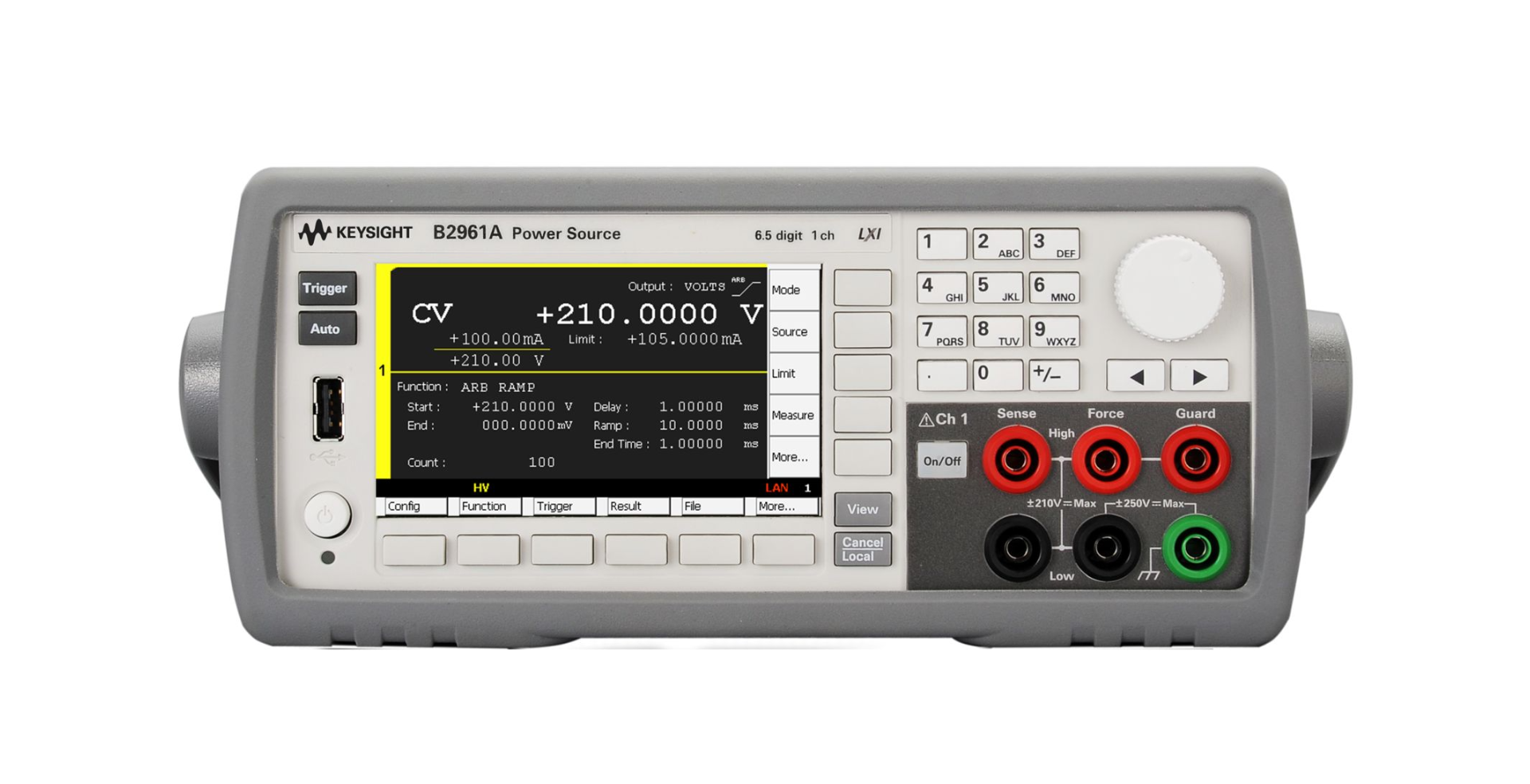

The Keysight B2961A is a 6.5-digit single-channel power source delivering precision voltage and current sourcing for characterization of sensitive electronic components. Operating in four-quadrant mode, it sources from 100 nV to ±210 V and 10 fA to ±3.03 A DC, with pulsed current capability to ±10.5 A. Maximum output power reaches 31.8 W. The instrument combines exceptional resolution—down to 100 nV / 10 fA programmable steps—with noise floors as low as 10 μVrms (10 Hz to 20 MHz) and 1 nVrms/√Hz at 10 kHz. Optional ultra-low noise filters enhance performance for noise-critical measurements.
Technical Specifications
• Output Configuration: Single channel, bipolar (4-quadrant operation)
• Resolution: 6.5 digits; 100 nV / 10 fA minimum programmable resolution
• Voltage Range: 100 nV to ±210 V
• Current Range (DC): 10 fA to ±3.03 A
• Current Range (Pulsed): Up to ±10.5 A
• Maximum Output Power: 31.8 W
• Noise Floor: 10 μVrms (10 Hz to 20 MHz); 1 nVrms/√Hz @ 10 kHz
• Built-in Monitor: 4.5-digit resolution; 10 μV / 1 pA minimum measurement resolution
– Key Features
• DC and pulsed output modes with swept DC/pulse/list sourcing
• Arbitrary waveform generation (1 mHz to 10 kHz) with seven built-in waveforms: sine, ramp, square, exponential, triangle, trapezoidal, and user-defined capabilities
• Programmable output resistance supporting constant and V/I emulation modes
• Real-time time-domain waveform monitoring via 4.3-inch color LCD display
• Optional ultra-low noise filtering for enhanced measurement fidelity
– Typical Applications
• Semiconductor device characterization
• Precision component testing requiring sub-nanovolt sourcing resolution
• Low-noise measurement systems
• Four-quadrant device modeling and parameter extraction
– Compatibility & Integration
• Interfaces: USB 2.0, LAN (LXI Class C), Digital I/O, GPIB
• Remote control via Keysight BenchVue, LXI-compliant web browser, and SCPI
• Supplied with Keysight B2900A Quick I/V Measurement Software
