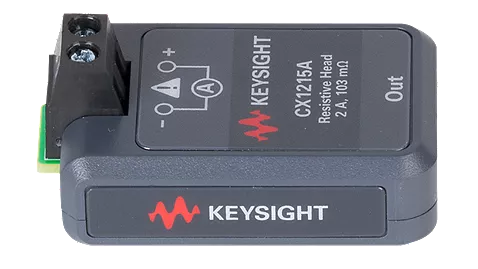

The Keysight CX1215A is a resistive sensor head engineered for precision current measurement within the Keysight CX1104A selectable shunt current sensor ecosystem. This component delivers dynamic current measurements up to 2 A across a 20 MHz bandwidth, with typical insertion resistance of 103 mΩ including the calibrated shunt resistor. The CX1215A combines low-impedance signal conditioning with high-frequency response, making it suitable for fast transient current characterization in laboratory and field test environments.
Technical Specifications
• Product Type: Resistive Sensor Head
• Maximum Dynamic Current: 2 A
• Bandwidth: 20 MHz
• Typical Insertion Resistance: 103 mΩ (including calibrated shunt resistor)
• Calibrated Shunt Resistor: Yes
– Key Features
• Wide 20 MHz bandwidth for transient response capture
• Low insertion resistance minimizes circuit loading during measurement
• Interchangeable with CX1211A, CX1212A, CX1213A, CX1214A, and CX1216A sensor heads for troubleshooting and fault isolation
• Includes five pairs of short wire pieces for rapid setup and connection
• Compatible with standard banana cable adapters via the CX1104A host unit
– Typical Applications
• Fast dynamic current profiling in power supply circuits
• Transient current characterization in semiconductor device testing
• Real-time current monitoring in switching and regulation circuits
• Embedded system power analysis and fault diagnostics
– Compatibility & Integration
The CX1215A operates exclusively with the Keysight CX1104A selectable shunt current sensor. This pairing integrates into broader test and measurement systems requiring precision current data acquisition. Connection to external measurement instruments occurs through the CX1104A’s banana adapter interface, supporting standard banana cable connectivity. When sensor performance issues arise, field-swappable replacements from the CX1211A through CX1216A family allow rapid isolation of hardware faults without major system reconfiguration.
