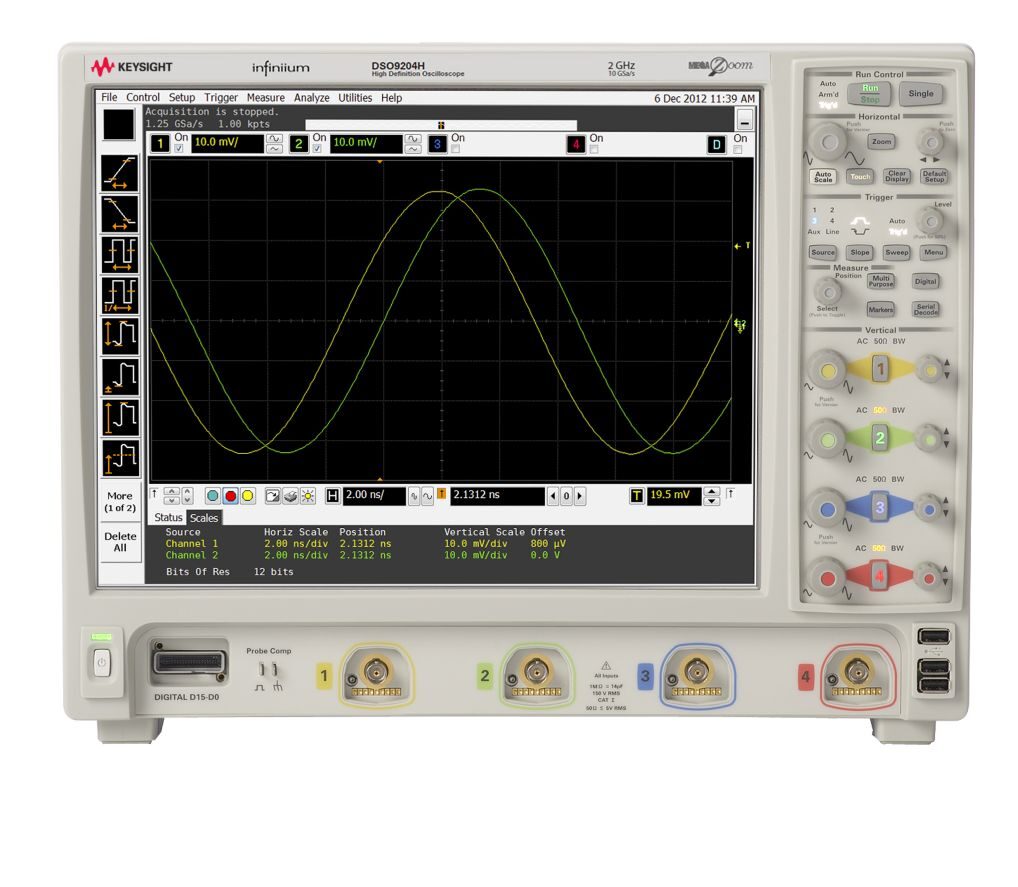

The Agilent/Keysight DSO9204H is a 2 GHz, 4-channel high-definition oscilloscope engineered for precision signal capture and analysis across medical, automotive, consumer, and power analysis applications. The instrument delivers up to 12 bits of vertical resolution with a noise floor 3X lower than traditional 8-bit designs, enabling detection of signal details masked by quantization noise. This performance is achieved through hypersampling and linear noise reduction technology.
Technical Specifications
• Bandwidth: 2 GHz (2-channel mode, 10 bits); 1 GHz (4-channel mode, 10 bits); 500 MHz (12-bit resolution)
• Vertical Resolution: Up to 12 bits (4096 quantization levels); 10 bits at 2 GHz; 12 bits to 500 MHz
• Sample Rate: Up to 10 GSa/s
• Memory Depth: 100 Mpts standard; optional upgrades to 50 Mpts, 200 Mpts, and 500 Mpts
• Display: 15-inch XGA LCD high-definition display
• Noise Performance: Up to 3X lower noise versus 8-bit oscilloscopes
– Key Features
• Four analog channels with configurable bandwidth/resolution trade-offs
• Advanced triggering: Edge, glitch, runt, timeout, pattern/pulse range, state, pulse width, window, setup and hold, video, and serial triggers
• Optional MSO capability for integrated digital channel analysis
• USB and LAN connectivity for PC integration and printer output
• XGA video output for external monitor connection
• Trigger in/out ports for instrument synchronization
• LXI functional Class C compliance
– Software & Integration
• Application-specific software for debug, analysis, and compliance testing
• InfiniiScan zone-qualified view triggering
• MATLAB integration option
• Instrument drivers for LabVIEW, LabWindows/CVI, and Measurement Studio
– Physical Specifications
• Compact form factor: 9-inch depth, 26-pound weight
• 15-inch XGA display for signal visualization
