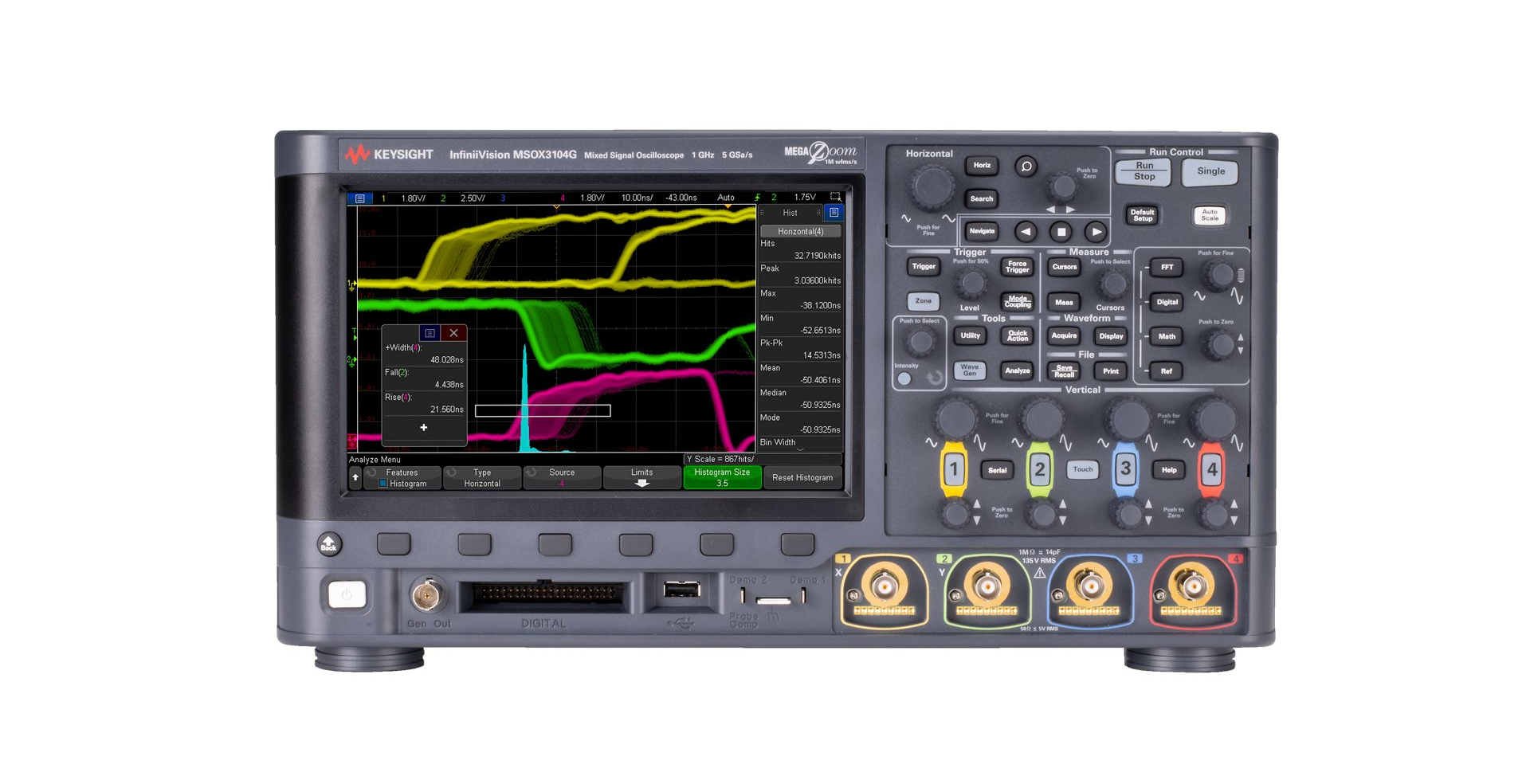

The Keysight DSOX3032G is a 350 MHz digital oscilloscope built for signal analysis, troubleshooting, and design validation across embedded systems, power electronics, and serial communications. This 2-channel instrument captures waveforms at 5 GSa/s with 4 Mpts memory per channel and achieves a 1,000,000 wfm/s update rate, delivering real-time visibility into complex signal behavior. The 8.5-inch capacitive touchscreen with Zone Touch triggering simplifies waveform isolation and measurement tasks.
Technical Specifications
• Bandwidth: 350 MHz
• Analog Channels: 2
• Maximum Sample Rate: 5 GSa/s
• Memory Depth: 4 Mpts per channel
• Waveform Update Rate: 1,000,000 wfms/s
• Rise Time: ≤1 ns
• Vertical Resolution: 8 bits
• Input Impedance: 1 MΩ || 14 pF
• Input Sensitivity: 1 mV/div to 5 V/div
• Input Coupling: AC, DC
• Maximum Input Voltage: 190 V
• Time Base: 2 ns to 50 s/div
• Display: 8.5-inch WVGA capacitive touch screen
• Operating Temperature: 5°C to 50°C
• Dimensions: 381 × 204 × 142 mm
• Weight: ~6 kg
– Key Features
• Integrated 20 MHz arbitrary waveform generator (AWG) for stimulus and validation
• Hardware-accelerated serial protocol decoding: I2C, SPI, UART/RS232/RS485, I2S, USB PD
• 8-digit counter/totalizer and 3-digit DVM for frequency and voltage measurements
• Bode plot capability for frequency response analysis
• Hardware-enabled mask limit testing and measurement limit testing with stop-on-failure
• Waveform and measurement histograms for statistical analysis
• Enhanced HDTV video signal analysis
• Secure erase function for data protection
• Zone Touch triggering for intuitive signal isolation
• Dual trigger sources: CH1, CH2, External, Supply Voltage
• Trigger modes: Automatic, Normal, Single
– Typical Applications
Embedded systems development, power supply characterization, serial bus protocol analysis, audio signal measurement, HDTV signal validation, and general-purpose circuit troubleshooting.
– Compatibility & Integration
Includes PathWave BenchVue Oscilloscope Software (BV004B), LAN/VGA connectivity module, USB Host and Device ports, and 2 × N2843A passive probes. Multi-language documentation and support for English, Chinese, Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, and Turkish.
