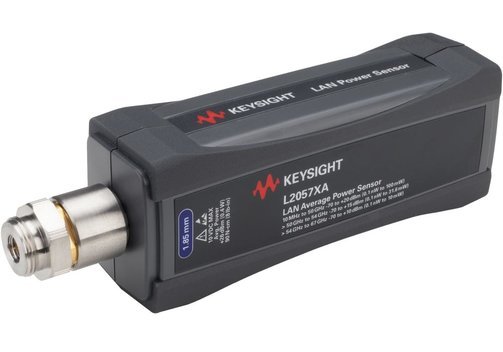

The Keysight L2057XA is a LAN-connected wide dynamic range average power sensor engineered for precise power measurements from 10 MHz to 67 GHz. It delivers up to 50,000 readings per second with internal zero and automatic calibration to minimize measurement uncertainty. The sensor accurately measures modulated signals across demanding R&D, manufacturing, and laboratory applications where speed and repeatability are essential.
Technical Specifications
• Frequency Range: 10 MHz to 67 GHz
• Power Measurement Range:
– −70 dBm to +20 dBm (10 MHz to 50 GHz)
– −70 dBm to +15 dBm (>50 GHz to 54 GHz)
– −70 dBm to +10 dBm (>54 GHz to 67 GHz)
• Connector: 1.85 mm male
• Measurement Speed: Up to 50,000 readings/second
• Data Storage: 1 million samples
• Sampling Rate: Variable, up to 1 MHz/second
• Real-time Measurement: Zero dead time for continuous pulse acquisition
– Key Features
• Average and time-selectivity average power modes with full dynamic range access
• Internal zero and automatic calibration functions
• Measures any modulated signal type
• Built-in presets for DME, GSM, EDGE, WCDMA, WLAN, and LTE
• LAN connectivity with optional 802.3at or 802.3af PoE injector support
• Included BenchVue software license (typically 30-day trial) for instrument control, data logging, and measurement visualization
– Typical Applications
• Modulated signal power measurement in development and production test
• Manufacturing throughput optimization with high-speed readings
• Pulse and time-varying signal characterization
• Multi-standard wireless device testing
– Compatibility & Integration
The L2057XA integrates with Keysight BenchVue software for automated measurement workflows. It operates over LAN and requires a compliant PoE injector for network operation (not included). Supplied with LAN cable (1.5 m), two BNC male-to-SMB female trigger cables (50 Ω, 1.5 m), and calibration certificate.
