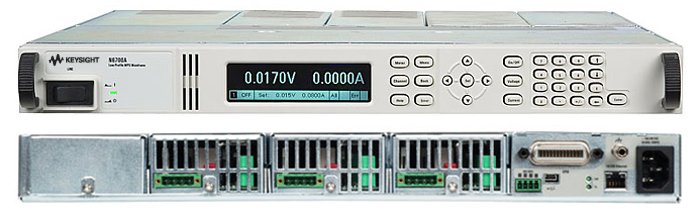

The Keysight N6701A is a 1U-high, 4-slot modular power system mainframe delivering 600 W total output capacity for automated test and benchtop applications. This low-profile mainframe accepts up to four N6700 series DC power modules—ordered separately—and supports N678x SMUs and N679x electronic loads. LXI Class-C compliant with GPIB, LAN, and USB interfaces, it enables flexible remote control via integrated web server and SCPI command set. System integrators can choose from over 30 compatible modules (20 W to 300 W each) to build optimized solutions for performance, precision, and cost.
Technical Specifications
• Slots: 4
• Maximum Output Power: 600 W (at 100–240 VAC input)
• Form Factor: 1U height, low-profile
• AC Input: 100–240 VAC, 50/60/400 Hz (operating range: 86–264 VAC)
• Power Consumption: 1500 VA typical
• Interfaces: GPIB, LAN, USB; LXI Class-C compliant
• Fuse: Internal (not customer accessible)
– Key Features
• Modular design accepts N6700, N678x, and N679x series modules
• Programmable output sequencing with delays across single or multiple mainframes
• Voltage slew rate control: adjustable from maximum speed to 10 seconds
• List mode supports user-defined arbitrary waveforms up to 512 points (module dependent)
• Flexible triggering and digital I/O capabilities
• Integrated web server for browser-based control
• SCPI programming support with Visual Basic and Excel Macro examples
• Synchronization signals enable coordinated multi-mainframe operation
– Typical Applications
• Automated test equipment (ATE) with synchronized power sequencing
• Battery life analysis and functional testing using N6780 SMU modules
• Multi-rail device characterization with precision power modules
• Production and design validation requiring programmable waveform generation
– Compatibility & Integration
The N6701A mainframe is backward and forward compatible with N677x, N678x, and N679x module families. Over 30 DC power module options span 20 W to 300 W ratings, from basic supplies to high-precision instruments. Multiple mainframes synchronize via I/O port connections for coordinated multi-supply test sequences.
