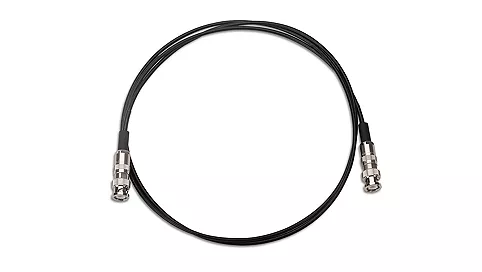

The Keysight PX0105A is a low inductance BNC cable engineered for precise current pulse measurements in demanding test environments. This 1.5 meter cable enables measurement of narrow current pulses down to 10 μs pulse width, making it ideal for characterization of fast transient events and pulse-mode device testing. With a DC voltage rating of 60V, the PX0105A integrates directly with Keysight’s M9602/03A and PZ2100A Source/Measure Unit platforms.
Technical Specifications
• Voltage Rating: DC 60V
• Minimum Pulse Width Measurement: 10 μs
• Connector Type: BNC
• Cable Length: 1.5 m
– Key Features
• Low inductance design minimizes signal distortion during fast current pulse acquisition
• Direct integration with Keysight SMU instrumentation
• Fixed 1.5 meter length optimizes test fixture configuration
– Typical Applications
• Characterization of pulse-mode power semiconductors
• Current transient measurements in power device validation
• High-speed switching event analysis
• Narrow pulse-width current sourcing and measurement
– Compatibility & Integration
The PX0105A is fully compatible with:
• Keysight M9602/03A Source/Measure Units
• Keysight PZ2100A SMU Series
