The Keysight U1168A Standard Test Lead Kit is a comprehensive accessory designed to enhance the functionality of compatible Keysight handheld digital multimeters. This kit provides the necessary tools for making secure and accurate connections to various electronic components and circuits for measurement purposes. It is engineered for use in professional testing environments, electronics repair, and laboratory applications where reliable test lead performance is critical.
### Technical Specifications
* **Test Leads:**
* Rating: CAT III 1000 V, CAT IV 600 V, 15 A
* **Test Probes (19 mm tips):**
* Rating: CAT II 1000 V, 15 A
* **Test Probes (4 mm tips):**
* Rating: CAT III 1000 V, CAT IV 600 V, 15 A (Highly recommended for CAT IV environments)
* **Alligator Clips:**
* Rating: CAT III 1000 V, CAT IV 600 V, 15 A
* **Fine Tip Test Probes:**
* Rating: CAT II 300 V, 3 A
* **SMT Grabber:**
* Rating: CAT II 300 V, 3 A
* Application: Suitable for testing surface-mount components due to pincer-shaped tips.
* **Mini Grabber (black only):**
* Rating: CAT II 300 V, 3 A
* Application: Features a hook-shaped tip for connecting to protective earth conductors.
### Compatibility
* **Digital Multimeters:** The U1168A Standard Test Lead Kit is compatible with the following Keysight handheld digital multimeter series:
* U1230 Series
* U1240 Series
* U1250 Series
* U1270 Series
### Kit Contents

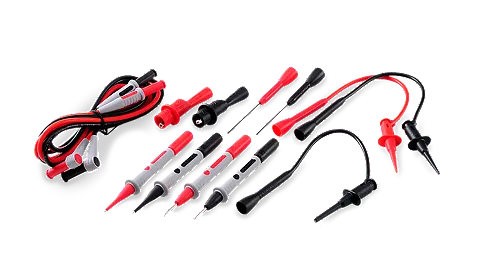

The Keysight U1168A Standard Test Lead Kit includes:
* One pair of standard test leads
* Test probes with 19 mm tips
* Test probes with 4 mm tips
* Alligator clips
* Fine tip test probes
* SMT Grabbers
* Mini grabber (black only)
### Physical Characteristics
* **SMT Grabber Tip Type:** Pincer-shaped, suitable for surface-mount components.
* **Mini Grabber Tip Type:** Hook-shaped, designed for connecting to protective earth conductors.
### Electrical Characteristics
* **Maximum Current Rating:** Varies by component, with test leads, 4 mm tips, and alligator clips rated up to 15 A.
* **Maximum Voltage Rating:** Varies by component, with test leads, 4 mm tips, and alligator clips rated up to CAT IV 600 V or CAT III 1000 V.
