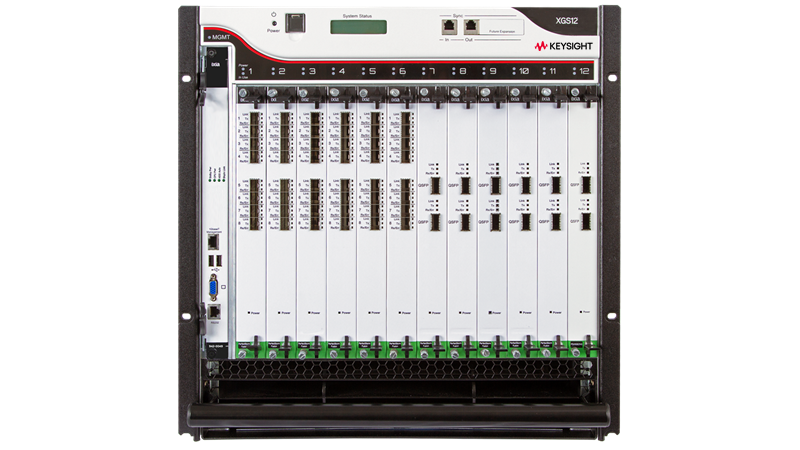

The Agilent/Keysight XGS12 is a 12-slot modular chassis platform engineered for high-density Layer 2-7 testing of network equipment, application performance, security, and conformance validation. Three models deliver flexible deployment: the XGS12-SD and XGS12-SDL offer standard performance on Windows 10 Professional or Windows 7, while the XGS12-HSL runs native IxOS for high-performance scenarios. The chassis occupies 11RU of vertical rack space and accepts hot-swappable Keysight XM form factor (XMFF) load modules across a high-speed backplane designed for bandwidth-intensive, resource-aggregated testing.
Technical Specifications
• Chassis Slots: 12 slots, XMFF load module compatible
• Rack Height: 11RU
• Interface Support: 400GE, 100GE, 50GE, 40GE, 25GE, 10GE, and 10/100/1000 Mbps copper Ethernet
• Power Input: Three single-phase sources, 200-240 VAC, 50/60 Hz, 20 A each
• Power Supply Module: Three removable 2825 W supplies per chassis
• Maximum Current Draw: 12 A at 200 VAC; 10 A at 240 VAC per line cord
• Power Cord Rating: 16 A continuous; plugs and receptacles rated 20 A; UL certified for supplied 200-240 VAC North American (NEMA L6-20P) cords
• Timing Synchronization: GPS antenna (AFD1) or IRIG-B (AFD2) support; STAR and Metronome chassis synchronization available with 80 nanosecond accuracy
– Key Features
• Field-replaceable Processor Module, Fan Module, and Power Supply Module
• Hot-swappable load modules for non-disruptive addition or replacement during active tests
• Front-to-back airflow management for high-density module operation
• Native IxOS or Windows-based control depending on model selection
– Typical Applications
• Network equipment testing and validation
• Layer 2-7 protocol and performance assessment
• Security and conformance testing at scale
• Application performance characterization
– Compatibility & Integration
The XGS12 integrates with IxNetwork, IxLoad, and BreakingPoint test applications through native APIs and automation frameworks.
