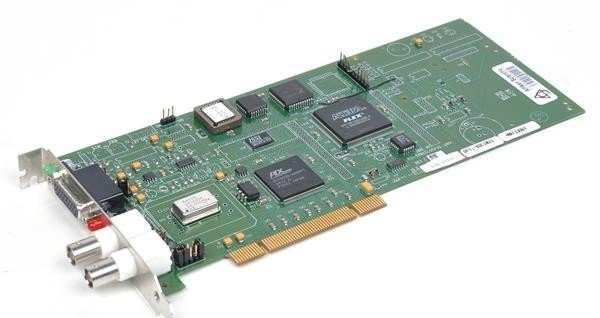

The Brandywine Communications JXI2 PCI-SyncClock32 is a high-precision timing module designed for integration into PCI bus systems. This module offers robust synchronization capabilities, ensuring accurate timekeeping and clock signal distribution for demanding industrial, scientific, and telecommunications applications. The PCI-SyncClock32 leverages an on-board microprocessor to automatically synchronize its internal clock to various reference signals, including IRIG A, B, NASA 36, 1PPS, and optionally GPS or Have Quick. This advanced synchronization mechanism, coupled with propagation delay correction and zero-latency time reads, enhances system reliability and performance by minimizing timing errors. The module also features user-programmable clock rates, external event time tagging, and a Match Time output for precise control of external processes.
### Technical Specifications
* **Form Factor:** Single-slot, 32-bit, 5 Volt PCI module.
* A 3/4 length board, with a 1/2 size available without GPS input.
* **Synchronization Inputs:**
* IRIG A, B, NASA 36 (1kHz Carrier).
* 1 PPS (Pulse Per Second).
* Optional GPS synchronization.
* Optional Have Quick (HQ) synchronization input.
* Optional RTCM-104 input (9600 baud RS422, 8 data bits).
* **Synchronization Output:**
* Optional IRIG-B time code output.
* **Input Signal Characteristics:**
* Input Amplitude: 0.25 to 10 Vpp.
* Input Impedance: >10k Ohms.
* Ratio: 2:1 to 6:1.
* Frequency Error: 100 PPM maximum.
* 1PPS Sync Accuracy: One microsecond.
* External Event Resolution: 100 nanoseconds.
* Minimum External Event Spacing: None.
* **Time Readout:**
* Zero latency time reads.
* 58 bits of BCD time data available to the host computer in two zero latency time reads.
* Time message includes units from microseconds to years.
* Status word available via an additional read.
* **Time Tagging:**
* External Event Time Tags.
* Resolution of time tag: 100 nanoseconds.
* Optional 16 separate time tag inputs with independent read register addresses.
* Optional 3 external event time tags with RS422 inputs (standard TTL level).
* **Clock Generation and Control:**
* On-board microprocessor for automatic synchronization.
* Ability to free run and be set by host commands over the PCI bus.
* Propagation delay correction.
* Adaptive gain loop for frequency adjustment (with disciplined TCXO or OCXO).
* On-board clock updated by disciplined oscillator if input code is missing or corrupted.
* Three user programmable rates.
* Divider for each rate generator programmable from 2 to 65,535.
* Input to rate generators: 3 MHz or 100 Hz for heartbeat, 3 MHz for Clock High, 100 Hz for Clock Low.
* Alternatively: 100 PPS for Clock Low, 3 MHz for Clock High, 3 MHz or 100 Hz for heartbeat.
* Optional DIVGATE option to synchronize pulse sequences to the integer second.
* Heartbeat timing generator for host processes.
* **Match Time Feature:**
* Asserts an output when the clock’s time matches a user-defined start time.
* Output termination under user control or when a pre-programmed stop time is encountered.
* Resolution of Match Time comparison: one microsecond.
* Match Pulse Resolution: Microseconds–eight milliseconds (TTL level at Start–Stop time).
* **Power:**
* +5 Vdc.
* Accommodates 5V bus signaling levels.
* The “UNIV” designation indicates compatibility with both 3.3V and 5V PCI bus signaling levels.
* **Physical and Environmental:**
* Size: 107mm X 257mm.
* Conduction cooled version available (CPCI, PMC).
* Industrial temperature range (-40°C to +85°C) available with -ITR option.
* **Interfaces/Connectors:**
* 1x 26-Pin Connector.
* 2x BNC Connectors.
* Connectors: BNC, high density DB-26.
* Connectors: SMB, high density IEEE-1284.
* **Software and Support:**
* Software packages available for Windows 95/98, Windows NT, DOS, and VxWorks.
* C language samples supplied.
* Digitally Signed WHQL Driver for Windows 8 & 10.
### Compatibility
* **PCI Bus:** Designed for standard 32-bit, 5V PCI bus systems.
* **Universal Signaling:** “UNIV” versions support both 3.3V and 5V PCI bus signaling levels.
* **Form Factor Variants:** Available in standard PCI, low profile PCI Express (PCIe), and PMC (Advanced Mezzanine Card) and CPCI (Compact PCI) form factors.
