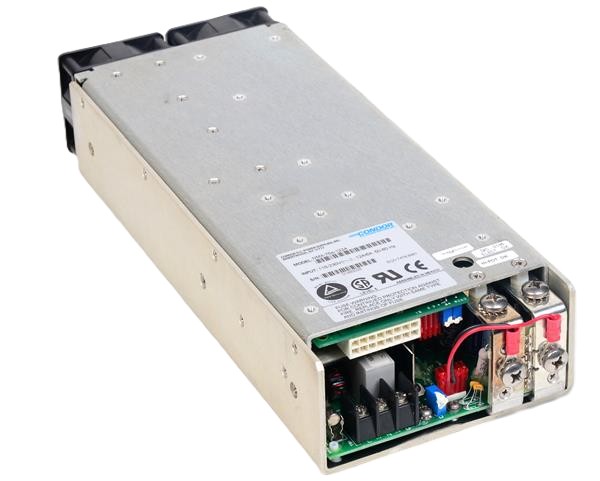

The Condor NMX-754-1224 is a 750 W AC/DC power supply engineered for industrial and commercial systems requiring multiple regulated outputs and high reliability. This four-output converter accepts universal AC input from 90 to 264 VAC at 47 to 63 Hz, delivering 5V at 120A as its primary output alongside auxiliary rails at 12V, −12V, and 24V. Active power factor correction achieves 0.99 typical at full load and meets EN61000-3-2 compliance.
## Technical Specifications
**Input & Protection**
• AC input: 90 to 264 VAC, 47 to 63 Hz (continuous)
• Power factor: 0.99 typical at full load
• Inrush current: <50 A at 115 VAC; <100 A at 230 VAC (thermistor-limited)
• Brownout protection: Holds regulation to 85 VAC
• Holdup time: ≥20 ms at full load
• AC power fail signal: TTL low 5 ms before output dropout
**Output Ratings**
• Output 1: 5V, 120A
• Output 2: 12V, 12A (peak 20A)
• Output 3: −12V, 10A
• Output 4: 24V, 3A
**Output Performance**
• Line and load regulation: ±1% (Outputs 1, 2, 4); ±4% (Output 3, requires ≥20% load on outputs 2 and 3)
• Ripple and noise: <1% peak-peak or 100 mV (whichever greater)
• Temperature coefficient: 0.02% per °C (Outputs 1, 2, 4)
• Stability: 0.1% over 8 hours (post 30-minute warm-up)
• Transient response: <500 µs to ±1% for 50% load step; peak <5%
• Adjustability: Outputs 1, 2, and 4 user-adjustable ±5% minimum
• Remote sense: Available on Outputs 1, 2; compensates 250 mV line drop with open-lead protection
• Overload/short-circuit protection: All outputs with automatic recovery
• Efficiency: 75% typical
## Key Features
• Dual converter design isolates logic and auxiliary outputs
• Forced current sharing enables N+1 redundancy configurations
• Remote inhibit functionality
• DC Power Good signal (standard)
• Monotonic turn-on and turn-off sequencing
• Low ripple and noise across all outputs
## Physical Specifications
• Dimensions: 12.72" L × 5.00" W × 2.50" H (323.1 mm × 127.0 mm × 63.5 mm)
## Typical Applications
Redundant power architectures, telecom infrastructure, industrial control systems, and equipment requiring multiple isolated voltage rails with strict regulation and low noise performance.
