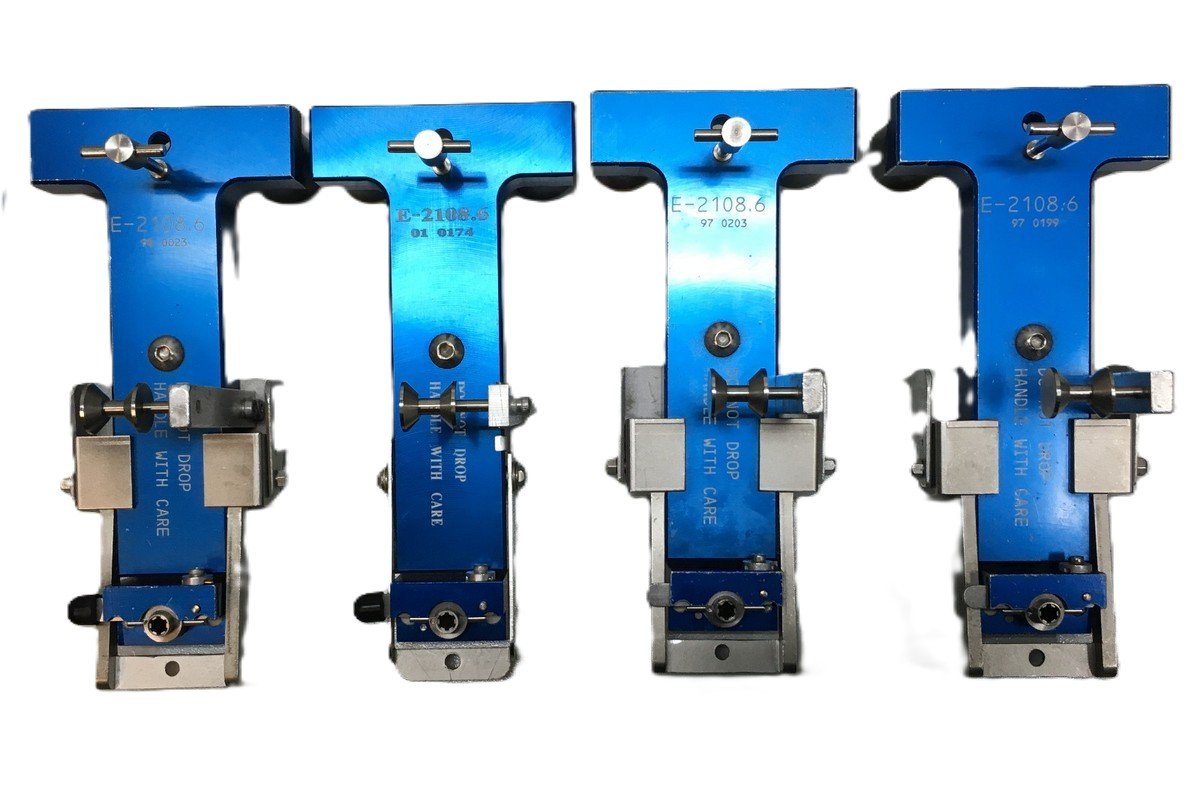

The DIAMOND E2108.6 is a precision polishing jig engineered for fiber optic connector end-face preparation. It secures connectors during polishing operations while maintaining controlled pressure and alignment to achieve optimal surface finishes critical for low-loss, high-return-loss performance. The jig eliminates variations caused by connector length differences, ensuring uniform polishing across production, repair, and laboratory environments.
Technical Specifications
The E2108.6 utilizes a jig-based system that holds connectors during abrasive and polishing film application. Hardened steel construction maintains dimensional stability throughout extended polishing cycles. The jig’s design accommodates variable connector geometries while standardizing the polishing interface.
– Key Features
• Adjustable alignment for precise connector positioning
• Pressure control for consistent polishing results
• Eliminates length-related variations in connector end-face preparation
• Achieves specified connector end-face geometry including radius of curvature and apex offset
• Benchtop form factor for manufacturing and service environments
• Compatible with polishing films and automated polishing equipment
– Typical Applications
The E2108.6 serves fiber optic connector manufacturing requiring high-volume production of precisely polished end-faces. It enables technicians to re-polish damaged or out-of-specification connectors in field repair scenarios. Research and development laboratories employ the jig for connector preparation under exacting optical performance standards. Installation and termination work in controlled environments benefits from the jig’s alignment and pressure repeatability.
– Compatibility & Integration
Designed for standard fiber optic connectors, the E2108.6 integrates with polishing machines and abrasive consumables. Specific connector types may require additional adapters or tooling. The jig functions within polishing workflows utilizing films and rotating or reciprocating polishing platforms. Maintenance includes regular cleaning and inspection of the jig surface and associated polishing consumables to sustain dimensional accuracy and performance.
