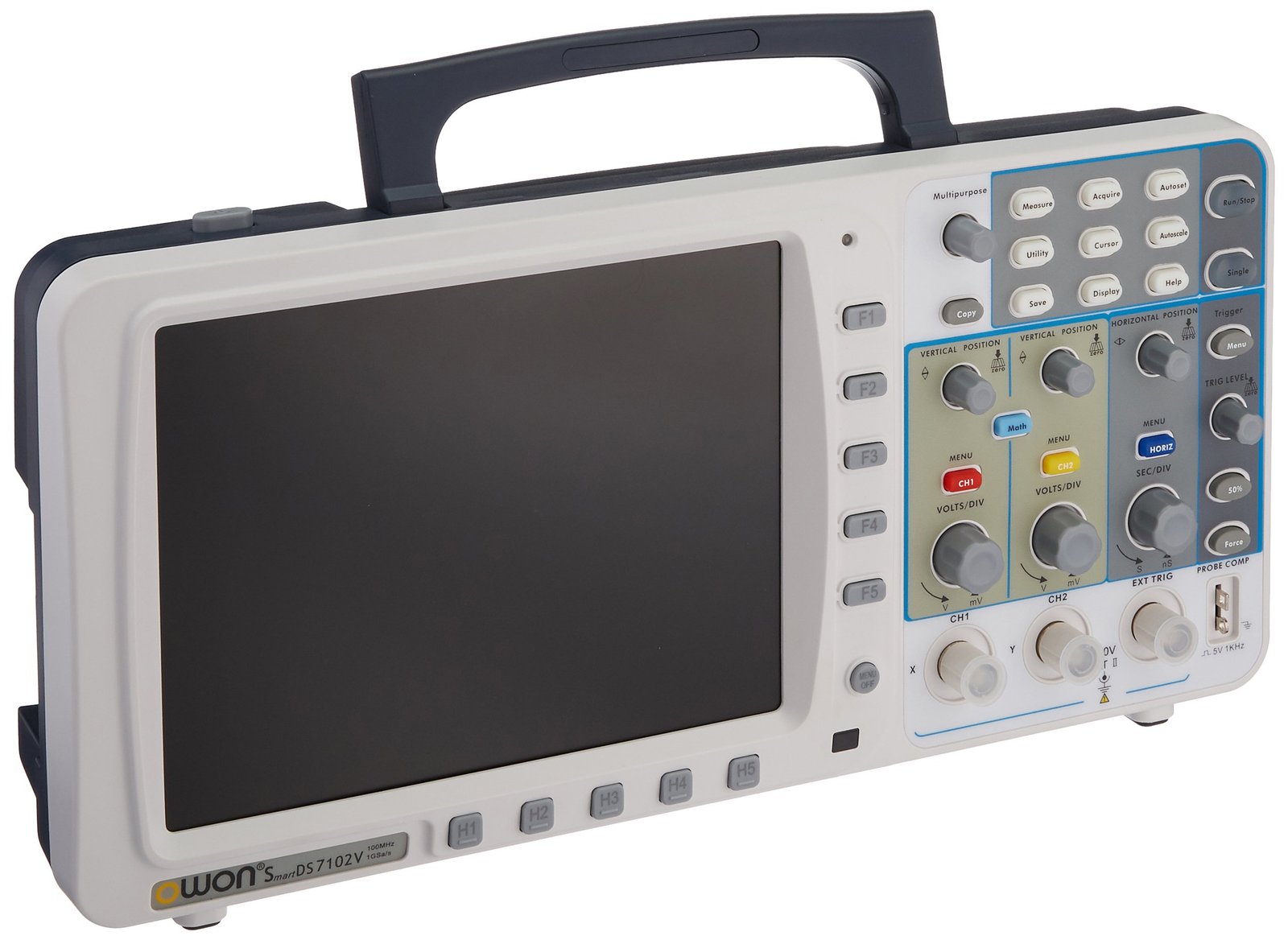

The Owon SDS7102V is a 2-channel digital storage oscilloscope with external trigger input, delivering 100 MHz bandwidth and 1 GSa/s real-time sampling for detailed signal analysis across electronics and engineering applications. Its 8-inch color TFT-LCD display (800 x 600 pixels) provides clear waveform visualization, while 10 Mpts per-channel memory depth enables extended data capture. The compact 340 × 155 × 70 mm chassis weighs 1.8 kg, supporting both bench and field deployments.
Technical Specifications
• Bandwidth: 100 MHz
• Channels: 2 analog + 1 external trigger
• Real-time Sample Rate: 1 GSa/s maximum
• Record Length: 10 Mpts per channel
• A/D Converter: 8-bit resolution (simultaneous 2-channel sampling)
• Vertical Sensitivity: 2 mV/div to 10 V/div
• DC Gain Accuracy: ±3%
• Input Coupling: DC, AC, GND
• Probe Attenuation: 1X, 10X, 100X, 1000X selectable
• Maximum Input Voltage: 400 V peak-to-peak (DC + AC)
• Display: 8-inch TFT-LCD, 800 × 600 pixels
• Dimensions: 340 mm W × 155 mm H × 70 mm D
• Weight: 1.8 kg (without battery)
– Key Features
• Trigger Modes: Edge, Pulse, Video, Slope, Alternate
• Acquisition Modes: Sample, Peak Detect, Average
• Digital Filtering: Low-pass, high-pass, band-pass, band-reject
• Waveform Math: Addition, subtraction, multiplication, division, FFT
• Automatic Measurements: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Frequency, Period, Rise/Fall Time, Delay A→B, ±Width, ±Duty, Duty Cycle
• Cursor Measurements: Voltage and time delta between cursor pairs
• Pass/Fail Testing: Built-in validation function
• Waveform Storage: 15 user-selectable waveforms with record/playback (2-channel)
• AutoScale: Automatic trigger, vertical, and timebase adjustment
• Lissajous Mode: Full-bandwidth phase analysis
• Phase Measurement Accuracy: ±3 degrees
– Interfaces & Integration
• VGA video output for external display
• USB Host and Device ports for peripheral and PC connectivity
• LAN port for remote operation and data transfer
• SCPI command protocol support
• LabVIEW compatibility for automated measurement workflows
• Dual-language help system (English, Chinese)
– Standard Accessories
Two test probes, USB cable, PC software CD, probe adjustment tool, power adapter with cord, and user manual.
