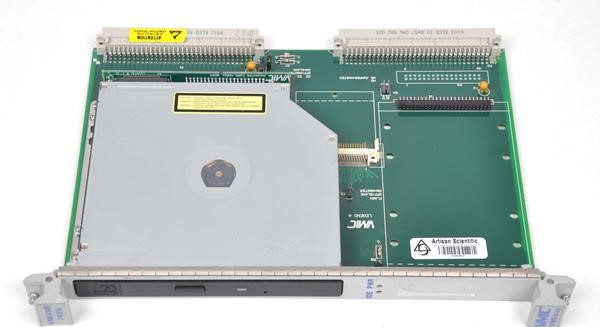

The Abaco Systems / VMIC VMIVME-7459-200 is a single-slot VME IDE CD-RW module that provides mass storage capability for VMEbus systems. This 6U form factor board connects directly to VMEbus P2-compatible Single Board Computers via the rear P2 I/O connector, eliminating front panel cable complexity. The module supports one compact disc drive with optional secondary storage on a hard disk drive or CompactFlash device, sharing a single IDE interface with configurable master/slave operation.
Technical Specifications
• Form Factor: 6U, single-slot (4 HP)
• Interface: VMEbus P2 connector for IDE interface connection
• Storage Configuration: Single CD-RW/DVD-ROM drive plus optional hard disk drive (up to 80 GB) or CompactFlash on shared IDE interface
• CD-RW Format Support: Photo CD, CD-I, Video CD, Enhanced CD, CD PLUS, CD-ROM-XA, CD-DA, CD-RW with Disc-At-Once, Track-At-Once, Multisession, and Incremental Packet Writing capability
• Power Supply: 5 V DC, 3 A
• Dimensions: 233 mm × 160 mm × 20 mm
• Weight: 0.5 kg
– Key Features
• Master/slave configurable drive arrangement for flexible storage topologies
• P2 user-defined pin connectivity minimizes external cabling requirements
• Support for multiple CD-ROM authoring formats and write modes
• Optional hard disk storage up to 80 GB on single IDE bus
– Typical Applications
Data archival and distribution in embedded VME-based systems. Onboard software development and compilation environments. Removable media backup and system boot functionality.
– Compatibility & Integration
Interfaced with VMIC VMEbus family P2-compatible SBCs. Requires standard VMEbus chassis with shrouded 96-pin P2 backplane connectors. Integration employs 64-conductor cable assembly connecting rear I/O P2 connectors on both SBC and module. CD-ROM authoring software is required separately for write operations.
Production Status: Restricted Production Phase as of July 1, 2011.
