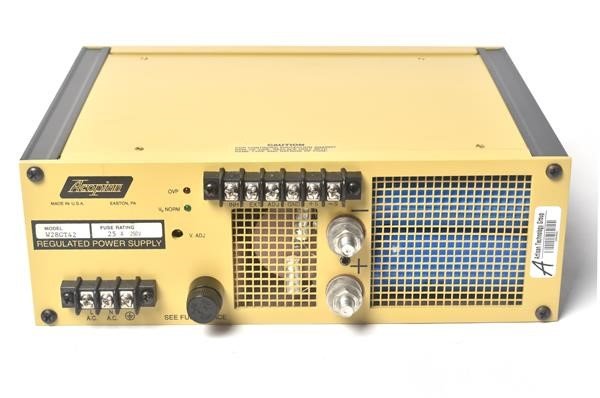

The Acopian W28GT42 is a switching regulated AC-DC power supply engineered for industrial and commercial applications. It delivers a single 28V DC output at 42A (1176W total power) from a compact, chassis-mounted enclosed enclosure. The unit accepts input across multiple AC ranges—90–132 VAC, 105–205 VAC, or 180–264 VAC (W28GT42-230 variant)—at 50–400 Hz, making it suitable for global single-phase installations.
Technical Specifications
• Output Voltage: 28V DC nominal
• Output Current: 42A
• Power Output: 1176W
• Input Voltage (Standard): 105–125 VAC or 105–205 VAC
• Input Frequency: 50–400 Hz
• Efficiency: 81%
• Isolation Voltage: 1.4 kV
• Dimensions: 10.25″ L × 7.90″ W × 3.44″ H (260.4 mm × 200.7 mm × 87.4 mm)
• Weight: 9.00 lbs
• Operating Temperature: 0°C to 71°C
• Storage Temperature: –55°C to +85°C
– Key Features
• Adjustable output voltage for system flexibility
• Remote on/off control capability
• Remote sense input for load-line compensation
• Electronic current limiting with automatic short-circuit recovery
• Floating output—either terminal can be grounded or floated up to 300V above ground
• UR standards compliance
– Typical Applications
Well-suited for ITE (Commercial) environments and industrial equipment requiring regulated 28V DC power at high current density with compact form factor.
– Compatibility & Integration
Chassis mounting design integrates directly into panel-mount installations. Remote control and sensing facilitate integration into automated systems and distributed power architectures.
