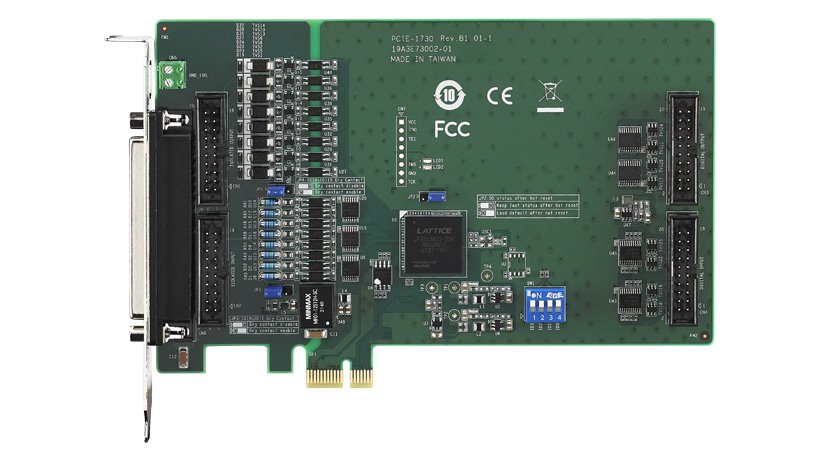

The Advantech PCIe-1730 is a 32-channel isolated digital I/O PCIe card designed for industrial automation, machine control, and process monitoring. It combines 16 TTL digital I/O channels with 16 optically isolated digital I/O channels, delivering 2,500 VDC isolation protection against voltage surges and ground loops. The card interfaces via PCI Express v1.0 and connects through one DB37 female connector and four 20-pin box headers.
Technical Specifications
Bus & Physical
• PCI Express v1.0
• Dimensions: 168 mm × 100 mm (6.6″ × 3.9″)
• Operating temperature: 0°C to 60°C
• Storage temperature: −25°C to 85°C
• Power consumption: 3.3V @ 280 mA typical, 12V @ 330 mA typical (max: 3.3V @ 420 mA, 12V @ 400 mA)
Isolated Digital Input (16 channels)
• Voltage thresholds: Logic 0 ≤ 3 V, Logic 1 ≥ 10 V (30 V max.)
• Isolation: 2,500 VDC
• Input resistance: 2.7 kΩ @ 1 W
• Response time: 100 µs
• ESD protection: up to 2,000 VDC
• Over-voltage capable: 70 VDC (short duration)
• Interrupt channels: 2 (PCIe-1730) or 16 (PCIe-1730H)
Isolated Digital Output (16 channels)
• Type: Sink (NPN)
• Voltage range: 5 VDC to 40 VDC
• Max sink current: 500 mA per channel
• Response time: 50 µs
• Isolation: 2,500 VDC
TTL Digital Input (16 channels)
• 5 V TTL compatible
• Voltage thresholds: Logic 0 ≤ 0.8 V, Logic 1 ≥ 2.0 V
TTL Digital Output (16 channels)
• 5 V TTL compatible
• Output voltage: Logic 0 ≤ 0.5 V, Logic 1 ≥ 2.4 V
• Sink capability: 24 mA @ 0.5 V
• Source capability: 15 mA @ 2.4 V
Advanced Features (PCIe-1730H)
• Programmable digital filter times from 64 µs to 131.072 ms
• Interrupt support on all 16 isolated input channels with selectable enable/disable per channel
