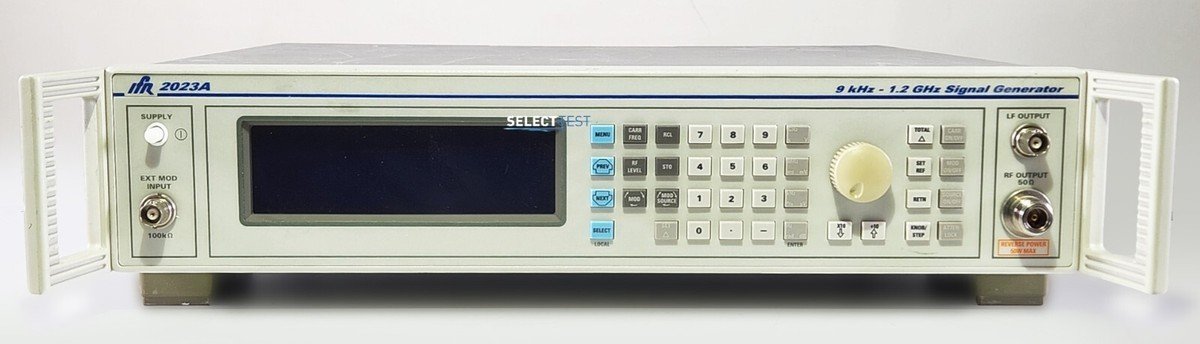

The Aeroflex IFR 2023A is a synthesized signal generator spanning 9 kHz to 1.2 GHz, engineered for RF testing across laboratory, production, and field maintenance environments. It delivers stable, spectrally pure signals with low phase noise suitable for characterizing narrow-band communication systems and components. The instrument combines analog modulation capability—AM, FM, phase modulation, pulse, and FSK—with intuitive front-panel operation and automated test equipment integration via GPIB and RS-232 interfaces.
Technical Specifications
Frequency Range: 9 kHz to 1.2 GHz
RF Output Level:
• Range: −140 dBm to +13 dBm (standard); extends to +25 dBm with optional high-power module
• Resolution: 0.1 dB
• VSWR: Class-leading performance
• Reverse Power Protection: 50 W with VSWR up to 5:1
• Output Level Offset: ±5 dB compensation available
Modulation Modes:
• AM: 0 to 99.9% depth (0.1% resolution); 30 kHz bandwidth (1 dB); +7 dBm max output at 99.9% depth
• FM: 0 to 100 kHz deviation (±5% accuracy at 1 kHz modulation rate); 100 kHz bandwidth (1 dB); very low carrier frequency error in DC coupled mode
• Phase Modulation: 0 to 10 radians; 10 kHz bandwidth (3 dB)
• Pulse Modulation: >40 dB on/off ratio; <10 µs rise time; fast pulse option available
• FSK: 3.9 kHz Bessel filtered
Internal LF Generator:
• Waveforms: Sine, triangular, square
• Frequency: Sine to 20 kHz; triangular/square to 3 kHz
• Output: 2 V RMS from 600 Ω source impedance via front-panel BNC
• Two-tone modulation capability
– Key Features
• Carrier on/off control via dedicated key
• Output level limit protection for sensitive external devices
• Selectable RF output units: µV, mV, EMF, PD, dB relative to 1 µV/1 mV/EMF/PD, dBm
• Menu-driven operation with clear display
– Typical Applications
• Receiver characterization and sensitivity testing
• Communication system component validation
• Transmitter linearity and modulation accuracy assessment
• Narrow-band system development and qualification
– Compatibility & Integration
GPIB and RS-232 interfaces enable direct integration into automated test systems and remote instrument control.
