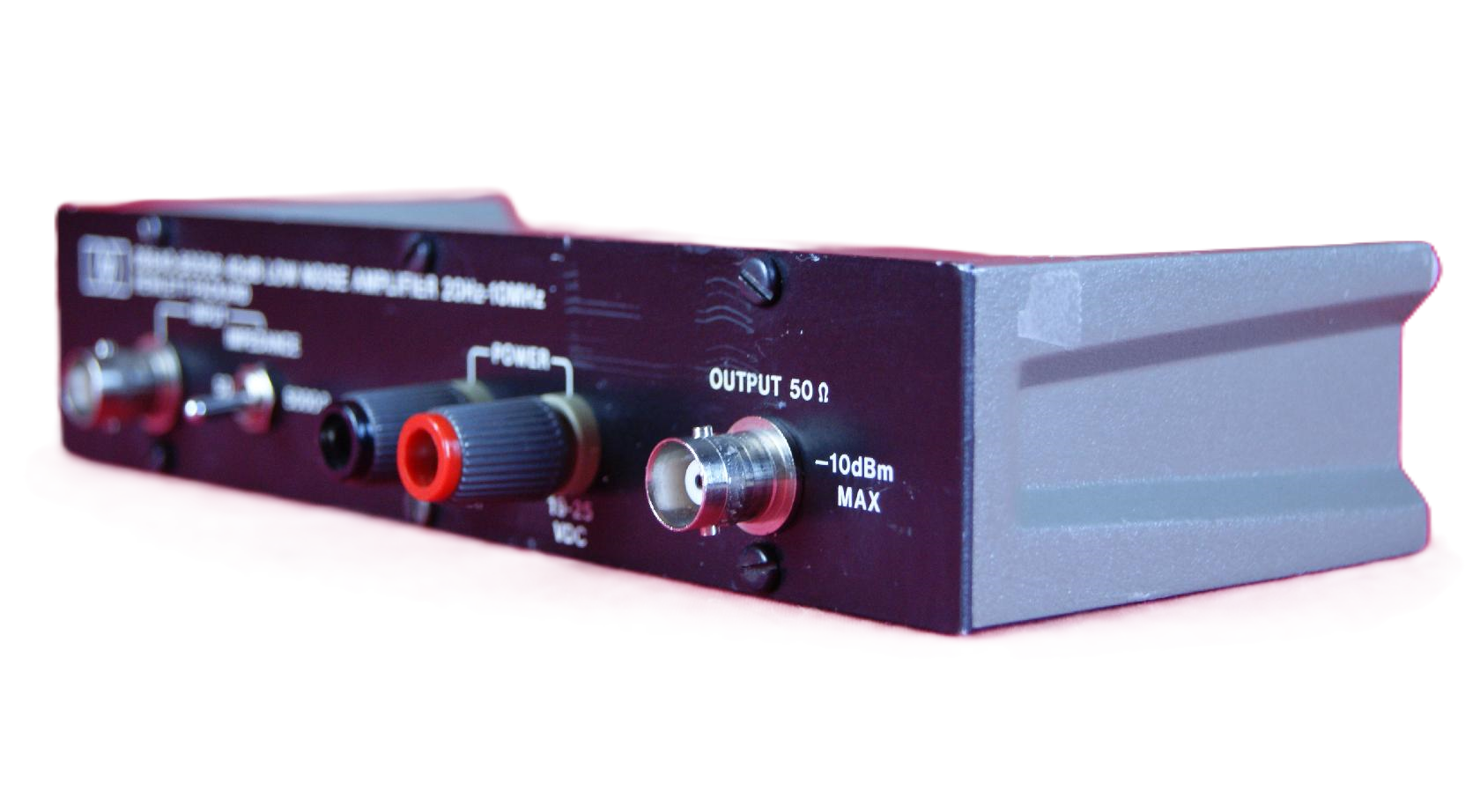

The Agilent/Keysight 08640-60506 is a low-noise amplifier (LNA) module designed for RF and measurement applications requiring clean signal gain across extended frequency ranges. This 50 Ohm component delivers 40 dB of gain and operates from 20 Hz to 10 MHz, making it suitable for precision instrumentation and test system integration.
Technical Specifications
• Gain: 40 dB
• Frequency Range: 20 Hz to 10 MHz
• Input/Output Impedance: 50 Ohms
• Form Factor: Plug-in module
• Safety Classification: Class I (protective earth terminal required)
– Key Features
• Fixed 40 dB gain configuration
• 50 Ohm source and load impedance matching
• Extended low-frequency response from DC to 10 MHz
• Designed as a replacement component for Agilent/Keysight systems
• Grounded chassis design for Class I safety compliance
– Typical Applications
• Signal conditioning in RF measurement systems
• Low-noise amplification for precision test instrumentation
• Broadband gain stages in audio frequency through RF bands
• System integration where standardized 50 Ohm impedance is required
– Compatibility & Integration
The 08640-60506 functions as a component module within Agilent/Keysight test platforms, including integration with the HP 86603A system. Its standardized 50 Ohm interface and plug-in form factor enable direct substitution and system reconfiguration. Installation requires connection to AC mains via a three-conductor power cable with ground connection. Designed for indoor use in Installation Category II environments with Pollution Degree 2 ratings.
