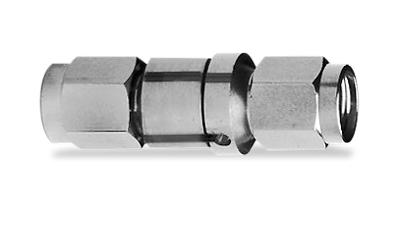

The Keysight 83059A is an instrument-grade 3.5 mm male-to-male coaxial adapter engineered for precision RF and microwave test applications. Operating from DC to 26.5 GHz, this adapter delivers predictable performance across demanding measurement setups while protecting sensitive test port connectors from damage caused by out-of-spec or poor-quality connectors. The 83059A maintains -32 dB typical minimum return loss and 0.074 dB typical maximum insertion loss, with SWR better than 1.05 across its frequency range. Designed for high-cycle repeatability, the instrument-grade connectors withstand numerous connect/disconnect operations without performance degradation, making this adapter ideal as a connector saver for expensive test ports and general interconnect applications.
Technical Specifications
• Connector Type: 3.5 mm male to 3.5 mm male
• Frequency Range: DC to 26.5 GHz
• Typical Return Loss: -32 dB minimum
• Typical Insertion Loss: 0.074 dB maximum
• Typical SWR: Better than 1.05
• Operating Temperature Range: 0 to 55° C
• Weight: 14 grams
– Key Features
• Instrument-grade connector design for precision measurement equipment
• Low insertion loss and excellent return loss performance across full frequency range
• Test port connector protection from damage by inferior connectors
• High mechanical durability through many connect/disconnect cycles
• Supplied in protective foam and wooden boxes
– Typical Applications
• Connector saver protecting expensive test port connectors
• General RF interconnect in test and measurement setups
• Adapter swap calibrations on network analyzers for non-insertable devices
– Compatibility & Integration
The 3.5 mm male connector configuration integrates directly into RF test systems requiring precision coaxial interconnect. Performance characteristics maintain measurement integrity in calibration workflows and long-duration test campaigns.
