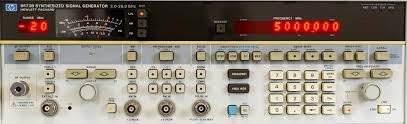

The Agilent/Keysight 8673A is a synthesized signal generator delivering precise RF and microwave signal generation from 2 GHz to 26 GHz. Built on indirect synthesis with YIG-tuned oscillator phase-locked to a 10 MHz quartz reference, it provides frequency stability better than 5 × 10⁻⁷ per day and exceptionally flat output across the full operating range. The instrument supports amplitude, frequency, and pulse modulation simultaneously, with output power continuously variable from +1 dBm to −120 dBm and 0.1 dB resolution.
Technical Specifications
Frequency & Stability
• Frequency range: 2 GHz to 26 GHz
• Frequency resolution: 1 kHz to 4 kHz depending on band
• Frequency stability: 80 dB, rise/fall times <35 ns, pulse widths to 100 ns, rates to 1 MHz via TTL drive
• Simultaneous AM, FM, and pulse modulation supported
Phase Noise
• Single-sideband phase noise optimized via phase-locked loop design
– Key Features
• Programmable control via front panel or rear HP-IB connector (all functions except line switch)
• Leveled pulse modulation with peak power calibrated before frequency multiplication
• Broadband component and receiver testing capability
– Typical Applications
• Wireless communications testing
• Radar system characterization
• RF and microwave component evaluation
– Compatibility & Integration
HP-IB programmable interface enables integration into automated test systems.
