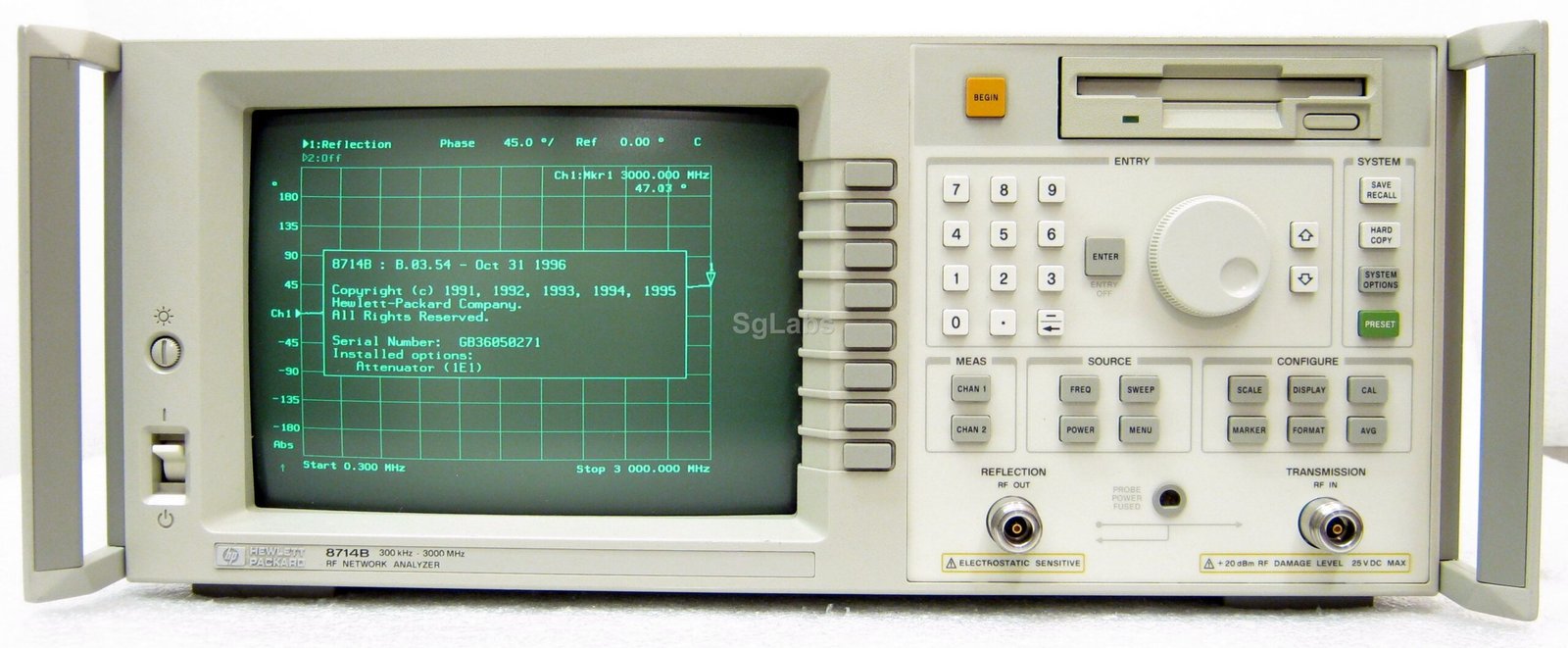

The Agilent/Keysight 8714B is a vector network analyzer for RF and microwave component characterization from 300 kHz to 3 GHz. It integrates a synthesized source with transmission/reflection test set, delivering S-parameter analysis, insertion loss, impedance, and group delay measurements across two independent channels. System dynamic range exceeds 100 dB in transmission mode, with real-time sweep speeds of 40–50 ms per sweep.
Technical Specifications
• Frequency range: 300 kHz to 3 GHz
• Source resolution: 1 Hz
• Output power: Up to +16 dBm
• System dynamic range: > 100 dB (transmission measurements)
• Receiver dynamic range: > 100 dB (narrowband mode)
• Source phase noise: –67 dBc/Hz at 10 kHz offset
• Source harmonics: < –30 dBc
• Sweep speed: 40–50 ms per sweep
• Test port impedance: 50 and 75 ohm options
• Display: CRT with rectangular, polar, and Smith-chart formats
• Markers: 8 per channel with search, max/min, bandwidth, and notch functions
– Key Features
• Two independent measurement channels
• S-parameter, transmission, and reflection analysis
• Complex impedance and SWR measurements
• Narrowband and broadband detection modes
• Linear group delay with configurable aperture (up to 20% of frequency span)
• Group delay range limited to 180° phase change within minimum aperture
• Fault location and structural return loss capability
• AM delay measurement (optional)
• Internal factory calibration and external standard support
– Typical Applications
• RF and microwave component testing
• Production environment characterization
• Filter and network tuning
• Insertion loss and phase validation
• Cable and transmission line analysis
– Compatibility & Integration
• Internal 3.5-inch disk drive (LIF/DOS formats)
• GPIB (IEEE 488.2, SCPI standard)
• Serial (RS-232C) and parallel (Centronics) ports
• VGA interface
• Optional LAN interface (TCP/IP Ethertwist)
• Optional IBASIC capability
• Weight: 50 lbs; Dimensions: 24 × 20 × 16 inches
