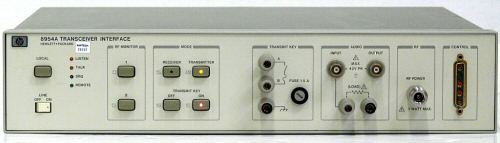

The Agilent/Keysight 8954A is a transceiver test interface that routes signals between measurement instruments and devices under test. It employs microwave switching technology to manage RF paths, audio circuits, and control lines, enabling comprehensive transmitter and receiver characterization across multiple signal domains. The unit integrates up to two RF signal sources, two RF monitors, one audio source, and one audio analyzer. Sixteen programmable Form A relays provide external device control and power supply routing to transceiver control connectors.
Technical Specifications
RF Performance
• RF frequency range: 100 kHz to 1300 MHz (usable DC to 18 GHz)
• VSWR (RF source to RF port): 1.15
• VSWR (RF port to RF monitor): 1.15
• RF insertion loss (RF source to RF port): 6.0 dB + 0.45 dB − 0.35 dB
• RF insertion loss (RF port to RF monitor): 0.5 dB
Audio Performance
• Audio frequency range: 20 Hz to 100 kHz (DC coupled)
• Audio insertion loss: 0.03 dB (20 Hz to 20 kHz); 0.3 dB (20 kHz to 100 kHz)
– Key Features
• Fully programmable signal routing via microwave switches
• Front-panel manual control of receive/transmit paths, RF monitor selection, and transmitter keying
• Sixteen Form A relays for independent external device control
• Power supply output routing capability to transceiver control connector
• Multi-domain signal integration: RF, audio, and DC control on single interface
– Typical Applications
The 8954A supports measurements on AM, FM, and SSB receivers and transmitters, providing the signal routing and monitoring infrastructure required for transceiver validation and performance characterization.
– Compatibility & Integration
This is a discontinued product. Technical documentation is available for reference.
