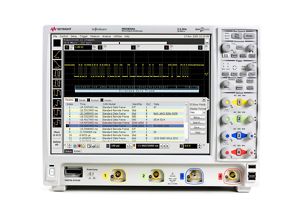

Agilent / Keysight DSO9254A Oscilloscope: 2.5 GHz, 4 Analog Channels

The Agilent/Keysight DSO9254A is a 2.5 GHz digital storage oscilloscope delivering four analog channels with integrated logic and protocol analysis capabilities. This Infiniium 9000 Series instrument combines oscilloscope, logic analyzer, and protocol analyzer functionality in a single platform, enabling efficient signal acquisition and debug workflows across demanding applications. The DSO9254A acquires waveforms at up to 250,000 per second with deep memory architecture supporting up to 1 Gpts per channel (upgradeable), maintaining high sample rates across extended capture windows. A 15-inch XGA touchscreen provides intuitive control and clear signal visualization.

Technical Specifications

Analog Channels & Bandwidth
• 4 analog channels
• 2.5 GHz analog bandwidth (upgradeable)
• 20 GSa/s maximum sample rate on 2 channels; 10 GSa/s on 4 channels
• 8-bit vertical resolution (greater than 12 bits with averaging)
• 250,000 waveforms per second acquisition rate

Memory Architecture
• Standard: 20 Mpts per channel (4-channel mode), 40 Mpts (2-channel mode)
• Upgradeable to 1 Gpts per channel

Input Specifications
• Input impedance: 50 Ω ±2.5%, 1 MΩ ±1% (11 pF typical)
• Sensitivity (1 MΩ): 1 mV/div to 5 V/div
• Sensitivity (50 Ω): 1 mV/div to 1 V/div
• Input coupling: AC (3.5 Hz) or DC (1 MΩ); DC (50 Ω)
• Hardware bandwidth limit: 20 MHz (1 MΩ input)
• Dynamic range: ±8 div from center screen
• Rise/fall time (20%-80% at 50 Ω): 98 ps

Channel Isolation
• DC to 50 MHz: 50 dB
• >50 MHz to 1 GHz: 40 dB
• >1 GHz to 4 GHz: 25 dB

Integrated Logic Analysis
• 16 digital channels (MSO models)
• 2 GSa/s maximum real-time sample rate
• 128 Mpts maximum memory depth per digital channel (at 2 GSa/s)
• 2 ns minimum width glitch detection

– Key Features

• Advanced triggering with protocol-aware debug capabilities
• Application-specific software for debug, analysis, and compliance testing
• Protocol viewers for physical layer isolation

– Typical Applications

Signal integrity analysis, mixed-signal debugging, serial protocol validation, and compliance testing in high-speed digital and RF design environments.

– Compatibility & Integration

Part of the Infiniium 9000 Series ecosystem with configurable bandwidth and memory options.
