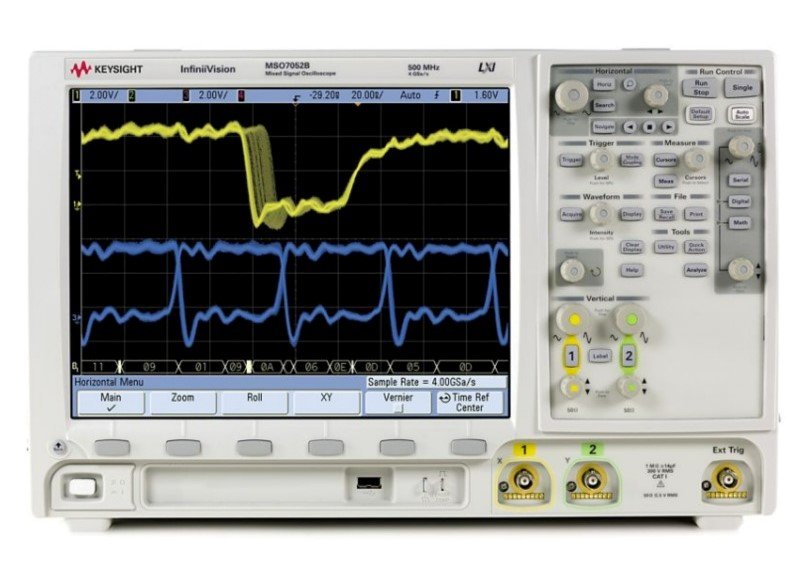

The Keysight MSO7054B is a mixed-signal oscilloscope delivering 500 MHz bandwidth across 4 analog channels plus 16 high-speed digital channels for comprehensive embedded systems debugging and complex circuit analysis. The instrument captures up to 100,000 waveforms per second with 8 Mpts standard memory and 4 GSa/s sample rate, enabling detailed observation of long-duration and infrequent events. A 12.1-inch XGA display with 256 intensity levels ensures clear signal visibility across mixed-signal measurements.
Technical Specifications
Analog Channels:
• Bandwidth: 500 MHz
• Channels: 4
• Sample Rate: 4 GSa/s
• Rise Time: 700 ps
• Minimum Glitch Capture: 250 ps
Digital Channels:
• Channels: 16
• Sample Rate: Up to 2 GSa/s (deep memory)
• Bus Width: Up to 16 bits (hex or binary display)
Memory & Capture:
• Memory Depth: 8 Mpts standard (MegaZoom III deep memory)
• Waveform Capture Rate: 100,000 waveforms/second
• Vertical Resolution: Up to 12 bits (high-resolution mode)
Display:
• Screen: 12.1-inch XGA
• Intensity Levels: 256
– Key Features
Triggering:
• Mixed-signal triggering across analog and digital signals simultaneously
• Standard serial triggers: I2C, SPI, USB
• Optional triggers: CAN/LIN, RS-232/UART, FlexRay, I2S, MIL-STD-1553
• Mask Limit Testing application support
Analysis & Decode:
• Serial decode: I2C, SPI, USB (standard); CAN/LIN, RS-232/UART, FlexRay, I2S, MIL-STD-1553 (optional)
• Segmented memory application for long dead-time capture
• Vector Signal Analysis (VSA) compatibility with 89601A software
• FPGA debug software available
Connectivity:
• USB and LAN ports
• LXI Class C compliant
• Web viewer for remote measurements and control
• AutoProbe interface with automatic attenuation and probe power
• 10 MHz reference in/out port
– Typical Applications
Embedded systems validation, digital protocol debugging, FPGA development, multi-domain signal correlation, and long-duration event capture in mixed-signal designs.
– Compatibility & Integration
Remote control and monitoring via LXI Class C-compliant LAN interface. AutoProbe support enables active probe configuration automation. Compatible with Keysight 89601A VSA software for advanced spectrum and digital modulation analysis.
