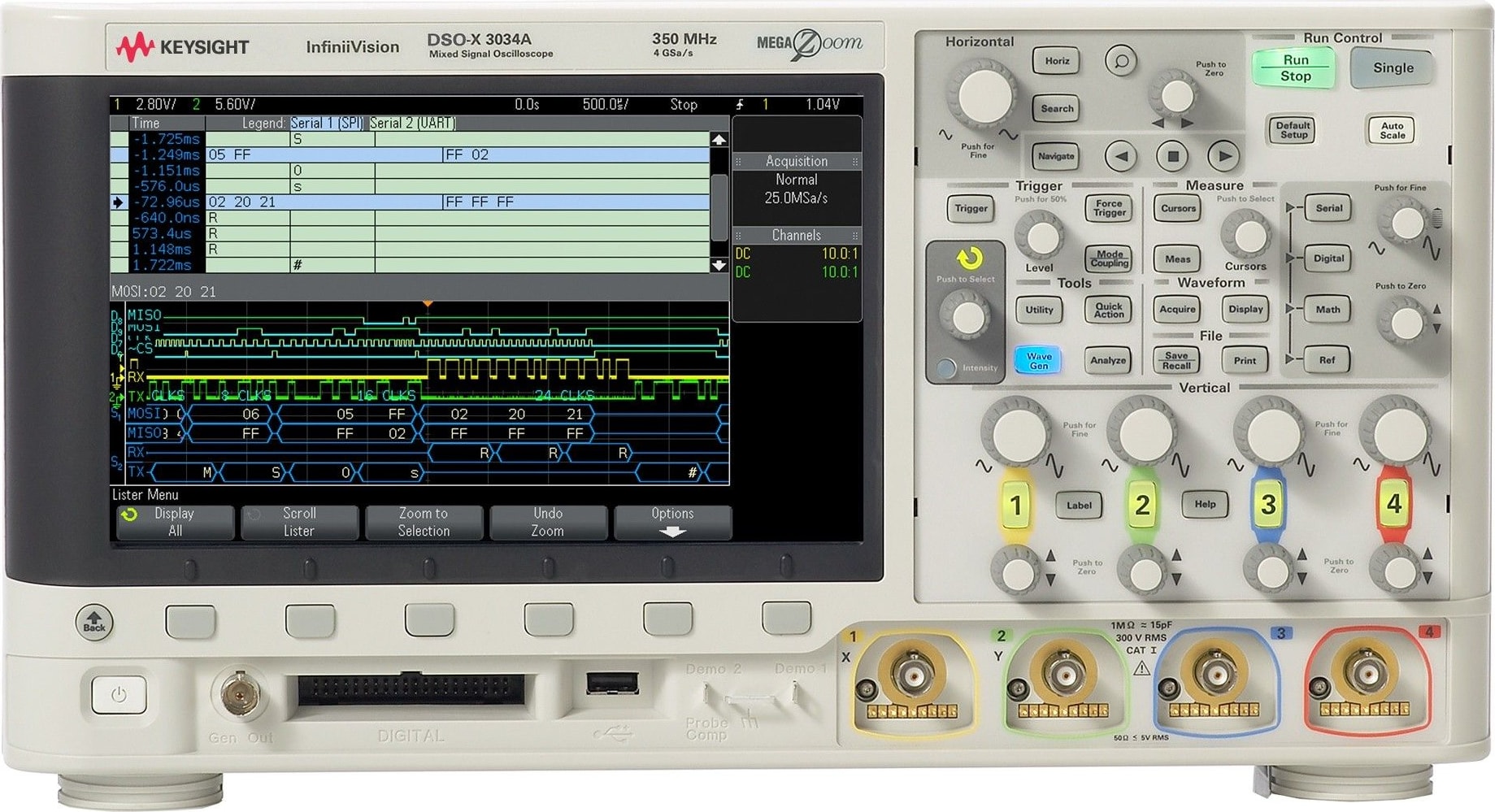

The Keysight DSOX3034A is a 4-channel digital storage oscilloscope delivering 350 MHz bandwidth and up to 1,000,000 waveforms per second for reliable capture of infrequent signal events. With sampling rates to 4 GSa/s, MegaZoom IV smart memory technology, and an 8.5-inch WVGA color touchscreen display, this instrument combines deep acquisition capability with intuitive signal visualization. The 8-bit vertical resolution and 1 ns rise time enable detailed signal analysis across applications from component-level troubleshooting to complex waveform characterization.
Technical Specifications
• Bandwidth: 350 MHz
• Analog Channels: 4
• Sampling Rate: Up to 4 GSa/s
• Memory Depth: 2 Mpts standard; upgradeable to 4 Mpts
• Waveform Update Rate: Up to 1,000,000 waveforms/second
• Vertical Resolution: 8 bits
• Rise Time: 1 ns
• Display: 8.5-inch WVGA (800×480) color LCD with capacitive touch
• Segmented Memory: Standard
• Acquisition Modes: Normal, Peak Detect, Averaging, High Resolution
– Key Features
• Advanced triggering includes edge, pulse width, pattern, rise/fall time, runt, setup & hold, video, and USB modes with zone-qualified triggering
• Math functions: add, subtract, multiply, FFT, differentiate, integrate, square root, plus advanced options (logarithm, exponential, filtering, magnify)
• Built-in instruments: 3-digit DVM, frequency counter, and protocol analyzer with serial triggering
• Optional 20 MHz function/arbitrary waveform generator supporting sine, square, pulse, triangle, ramp, noise, and DC outputs
• USB connectivity (dual host ports plus device port) with optional LAN/VGA and GPIB modules
• MSO functionality (digital channels) available as post-purchase upgrade
– Typical Applications
Signal integrity analysis, power supply troubleshooting, embedded system debugging, serial protocol analysis, and general-purpose analog circuit characterization.
– Compatibility & Integration
The DSOX3034A accepts optional modules for mixed-signal capability, network connectivity, and GPIB control. Front and rear USB ports support direct printer connection and memory device access.
