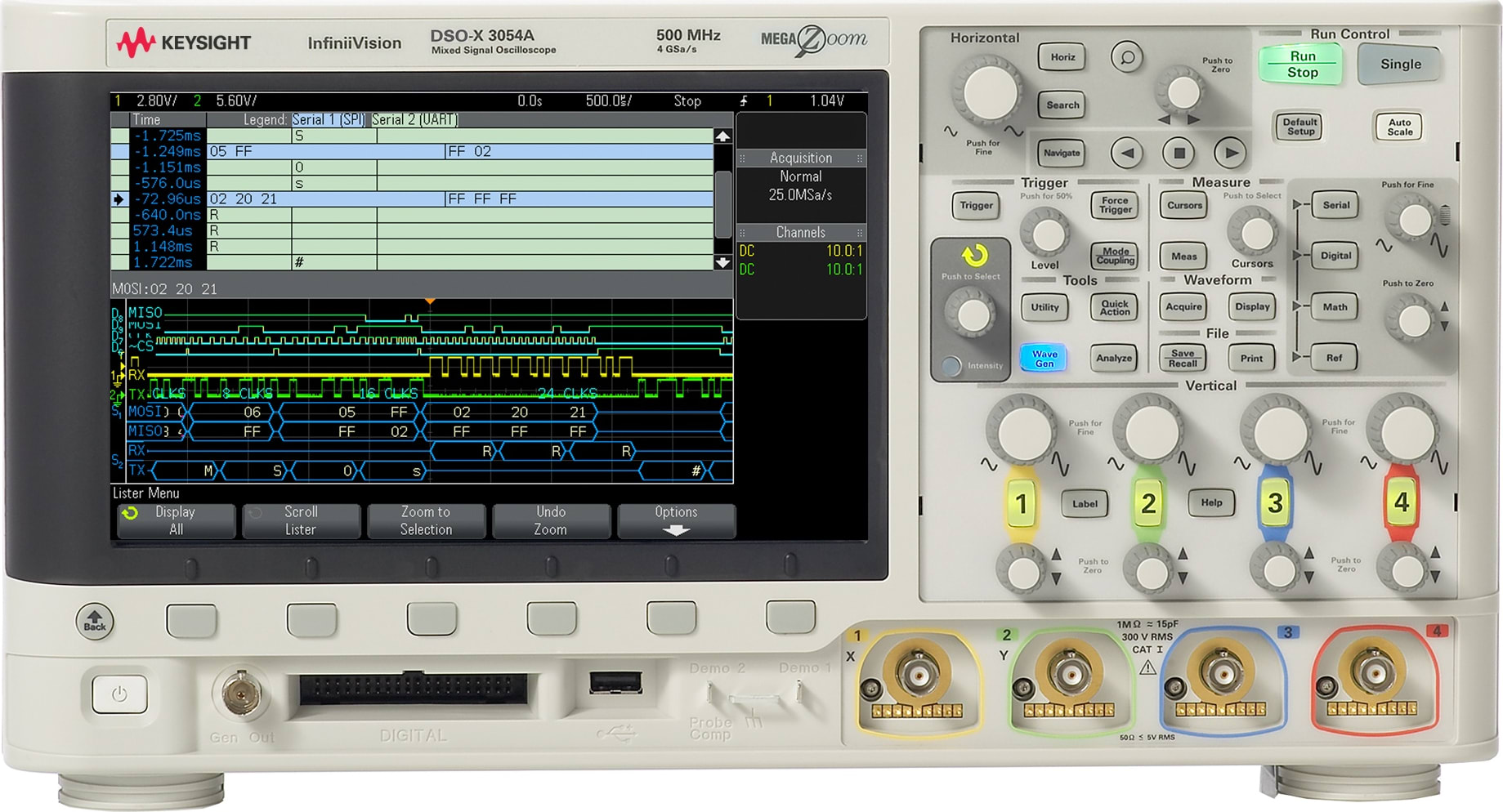

Agilent / Keysight DSOX3054A Oscilloscope: 500 MHz, 4 Channels

The Keysight DSOX3054A is a 500 MHz, 4-channel digital storage oscilloscope engineered for signal acquisition, debugging, and analysis across demanding electronic design and test environments. This instrument delivers real-time sampling at 2 GSa/s per channel with 4 Mpts memory depth, enabling detailed capture and inspection of complex waveforms. Its 8-bit vertical resolution spans 1 mV/div to 10 V/div with ±1.5% typical accuracy, supporting both high-impedance (1 MΩ || 15 pF) and 50 Ω input configurations.

Technical Specifications

• Bandwidth: 500 MHz
• Channels: 4 analog inputs
• Real-Time Sample Rate: Up to 2 GSa/s per channel
• Memory Depth: 4 Mpts per channel
• Vertical Resolution: 8 bits
• Vertical Sensitivity: 1 mV/div to 10 V/div
• Vertical Accuracy: ±1.5% (typical)
• Input Coupling: AC, DC, GND
• Input Impedance: 1 MΩ ± 1% || 15 pF ± 2 pF, or 50 Ω ± 2%
• Display: 10.4-inch XGA (1024 × 768) color LCD
• Waveform Update Rate: Up to 100,000 waveforms/sec
• Power: 100–240 VAC, 50/60 Hz
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 5% to 95% RH at 40°C
• Dimensions: 210 mm (H) × 435 mm (W) × 144 mm (D)
• Weight: 5.2 kg (approx.)

– Key Features

• Advanced Triggering: Edge, Pulse Width, Runt, Window, Logic, Pattern, Setup/Hold, Serial Data, Sequence, Glitch, Video, Burst (optional modes)
• Trigger Jitter: < 0.15 UI (typical)
• Segmented Memory: Up to 2048 segments with < 10 ms re-arm time
• Measurements: Over 50 automatic waveform measurements including Vpp, Vrms, Vmax, Vmin, frequency, period, rise/fall time, duty cycle, overshoot, area, and noise
• Waveform Math: Add, Subtract, Multiply, Divide, FFT (up to 1 Mpts resolution)
• Mask Testing: User-defined pass/fail validation
• Histograms: Real-time statistical display
• Active Probe Power: Integrated supply for active probe operation

– Connectivity & Integration

• USB: Host port (front) for flash drives; Device port (rear) for remote control and data transfer
• Ethernet: 10/100 Base-T LXI-compliant port for network-based remote operation
• Video Output: VGA for external monitor connection
• Protocol Support: Optional I2C, SPI, UART, CAN, LIN serial bus triggering and decoding
• GPIB: Optional interface availability

– Typical Applications

Ideal for embedded system debugging, power integrity analysis, signal integrity validation, educational laboratories, and general-purpose analog and mixed-signal troubleshooting in production and development environments.
