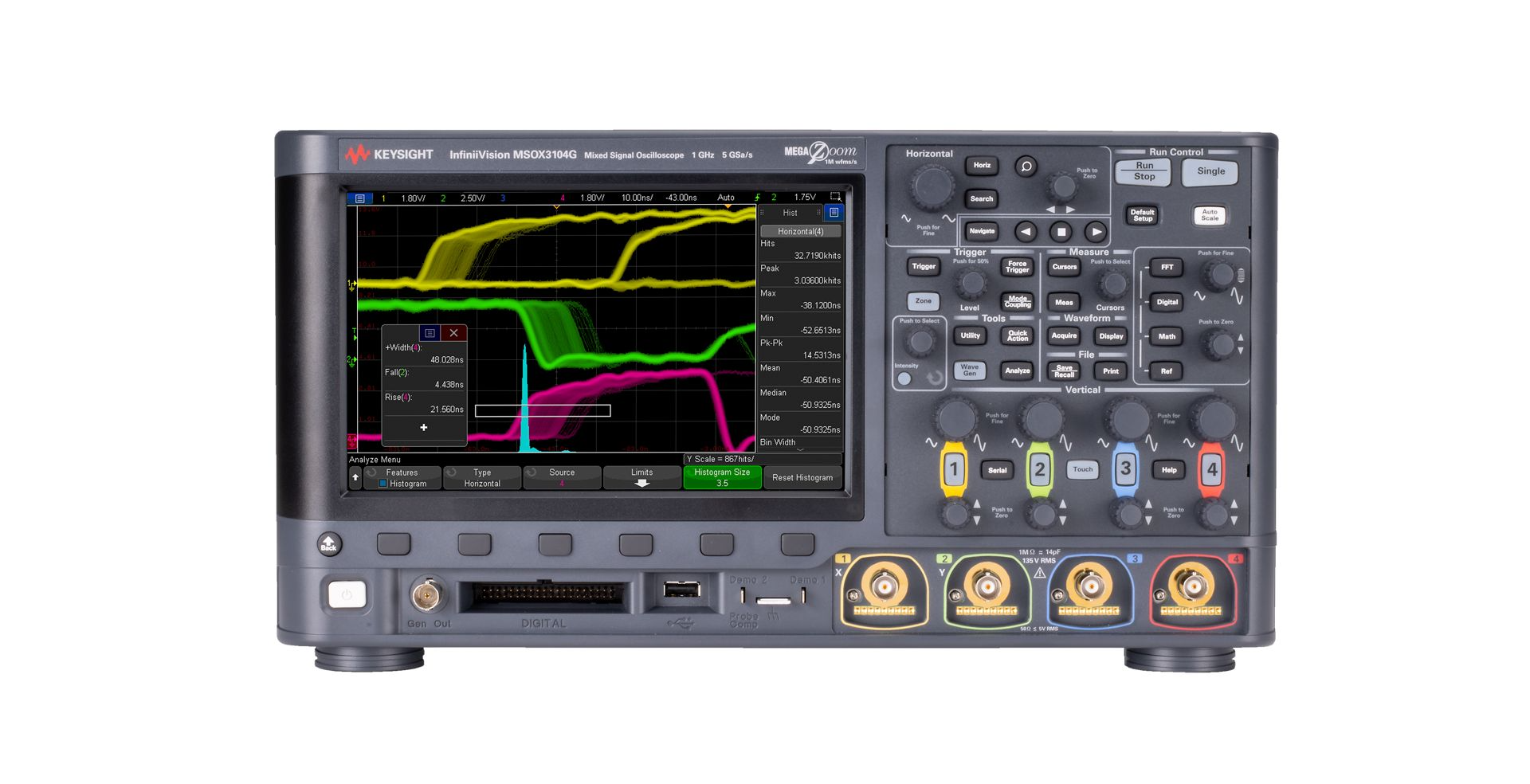

The Keysight DSOX3104G is a 1 GHz bandwidth digital storage oscilloscope built around a 7-in-1 instrument platform. It delivers four analog channels with up to 5 GSA/s sample rate and 4 Mpts memory depth, enabling detailed capture and analysis of complex signals. The 8.5-inch capacitive touch display with gesture support provides intuitive waveform navigation, while Zone Touch Trigger technology isolates difficult transient events. Waveform update rates to 1,000,000 wfms/s ensure anomalies are caught and displayed in real time.

Technical Specifications

• Bandwidth: 1 GHz
• Analog Channels: 4
• Sample Rate: 5 GSA/s (half channels), 2.5 GSA/s (all channels)
• Memory Depth: Up to 4 Mpts (half channels), 2 Mpts (all channels)
• Waveform Update Rate: 1,000,000 wfms/s
• Vertical Resolution: 8 bit
• Rise Time: ≤450 ps
• Input Impedance: 1 MΩ
• Input Capacitance: 8 pF
• Display: 8.5-inch capacitive touch screen

– Key Features

• Serial bus triggering and decoding for I2C, SPI, UART/RS232/RS485, I2S, and USB PD protocols
• Hardware-enabled mask and measurement limit testing
• Arbitrary/function waveform generator (20 MHz)
• 3-digit digital voltmeter, 8-digit counter, and totalizer functions
• MegaZoom IV Smart Memory Technology for fast waveform capture and deep memory analysis
• Waveform and measurement histograms
• Secure erase capability
• Embedded software package and PathWave BenchVue Oscilloscope Software included standard

– Typical Applications

Embedded systems testing, signal integrity analysis, serial protocol debugging, frequency response measurement, and general-purpose signal characterization in development and validation environments.

– Compatibility & Integration

USB host and device ports, LAN and VGA I/O standard. GPIB available as optional interface. Upgradable platform supports bandwidth and digital channel additions.
