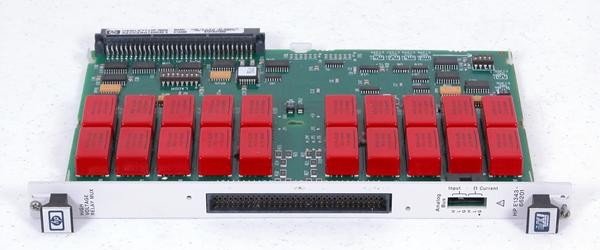

The Agilent/Keysight E1343A is a 1-slot B-size VXI relay multiplexer module delivering high-voltage switching across 16 channels with configurable architectures. Built on reed relay technology, the module supports operation as a single 1×16 three-wire multiplexer, two independent 1×8 three-wire multiplexers, or a 1×8 six-wire multiplexer—enabling flexible test configurations from simple analog routing to four-wire resistance measurements and precision 6-wire setups. Register-based control via SCPI commands and downloadable firmware provide straightforward integration into automated test systems.
Technical Specifications
Switching Performance
• 16 channels, each with high, low, and guard connections
• Reed relay construction with break-before-make switching
• 350 channels/second typical scanning rate
• Relay life: 10⁸ operations (no load); 10⁷ operations (rated load)
• Relays open on power-up and power-down
Electrical Ratings
• Maximum voltage (any terminal to any other or chassis): 250 Vdc / 250 Vrms ac
• Maximum current per channel common (non-inductive): 50 mA
• Maximum power per channel: 1 VA
Module Architecture
• VXI device type: Register-based, A16, slave only
• Form factor: B-size, 1 slot
• Connector: P1
• Screw terminal connections: 16–26 AWG wire (0.5–1.5 mm)
• Weight: 10 lbs (approximate)
• Dimensions: 12 × 10 × 8 in (approximate)
Power Consumption
• +5 V: 0.2 A
• +12 V: 0.13 A
• +24 V: 0 A
• −5.2 V: 0 A
• −12 V: —
– Key Features
• Multiple configuration modes for general-purpose analog switching
• Shared switch card design with E1345A, E1346A, E1347A, E1355A, E1356A modules
• Analog bus connectivity for inter-module communication
• SCPI-based control with downloadable command module firmware
– Compatibility & Integration
The E1343A fits directly into B-size VXI mainframes (Agilent E1300B, E1301B). For C-size mainframe integration, deploy the E1403C active adapter. Analog bus cables enable connection with companion instruments such as the E1326B DMM. Instrument drivers and software support include I-SCPI (Win 3.1, Series 700), C-SCPI (LynxOS, Series 700), VXIplug&play frameworks, and panel drivers.
