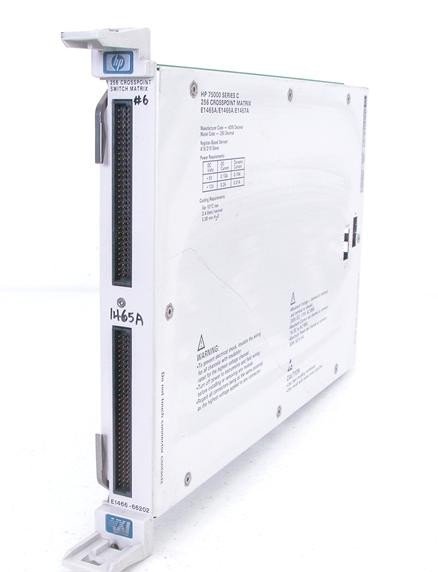

The Agilent/Keysight E1465A is a C-size VXI relay matrix switch module delivering 256 crosspoints in a compact 16×16 two-wire configuration. Engineered for automated test, signal routing, and data acquisition, this register-based module handles voltages to 200 Vdc or 170 Vacrms, with per-channel current ratings of 1 A and maximum power dissipation of 30 W per channel. The latching armature relay design ensures low on-resistance—less than 4.0 Ω worst-case and under 1.8 Ω best-case at initial contact, degrading to under 10.0 Ω end-of-life. Insulation resistance exceeds 10⁸ Ω under humid conditions and 10⁹ Ω at standard lab conditions.
Technical Specifications
• Switching Matrix: 16×16 two-wire relay matrix, 256 total crosspoints
• Voltage Rating: 200 Vdc or 170 Vacrms (238 Vac peak-to-peak)
• Current per Channel: 1 Adc or 1 A ac peak (non-inductive)
• Power per Channel: 30 Wdc maximum; 62.5 VA module maximum (resistive load)
• Closed Channel Resistance: < 4.0 Ω worst-case initial; < 1.8 Ω best-case initial; 10⁸ Ω (40°C, 95% RH); > 10⁹ Ω (25°C, 40% RH)
• Thermal Offset: 10 MHz (worst crosspoint, –3 dB)
• Closed Channel Capacitance: < 270 pF (Hi-Low); < 430 pF (Hi-Ground); < 440 pF (Lo-Ground)
• Crosstalk Within Card (worst path, typical): –66 dB <10 kHz; –45 dB <100 kHz; –29 dB <1 MHz
• Relay Life: 10⁷ operations (no load); 5 × 10⁷ operations (no load)
– Key Features
• Latching armature relays for power efficiency
• QUIC easy-to-use terminal blocks; interchangeable blocks enable topology reconfiguration
• Scalable architecture supporting row and column expansion via chaining cables
• Compatible with E1466A and E1467A modules for larger matrix configurations
– Typical Applications
• Automated test equipment (ATE) signal routing
• Multi-channel data acquisition and signal monitoring
• Precision low-level switching in measurement systems
– Compatibility & Integration
• Four E1465A modules interconnected create a 32×32 matrix (1024 crosspoints)
• Full E1401B 13-slot mainframe accommodates up to 3072 two-wire crosspoints across multiple modules
• VXIbus C-size, register-based control
