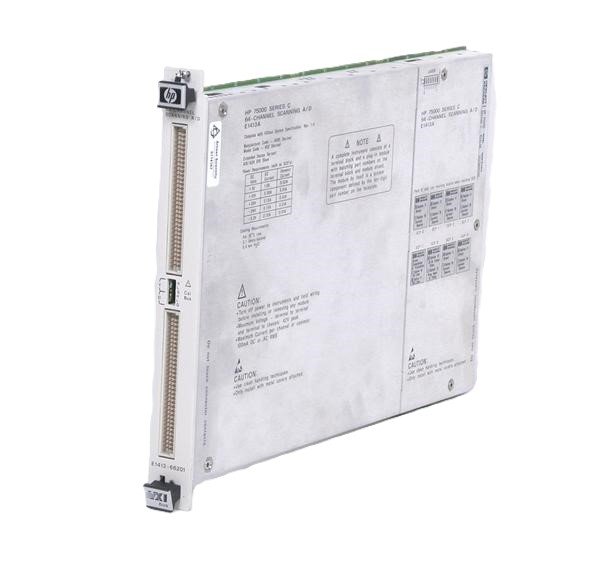

The Agilent/Keysight E1413-60001 is a Direct Input Signal Conditioning Plug-on (SCP) card engineered for integration with the E1413A/B/C VXI data acquisition modules. This 8-channel SCP delivers input signal conditioning essential for high-performance data acquisition within VXI-based test systems. The E1413-60001 conditions signals before digitization, enabling precise measurements across configurable voltage ranges.
Technical Specifications
• Channels: 8 input channels per SCP card
• Resolution: 16-bit (base E1413 module specification)
• Input Voltage Range: 4 mV to 16 V full-scale (base configuration); expandable to 60 V full-scale with attenuator SCP
• Interface: VXIbus backplane connection to E1413A/B/C modules
• Architecture: Signal conditioning precedes A/D conversion; includes buffering and filtering per channel
• Calibration: Automatic self-calibration supported on compatible modules; 90-day calibration interval typical
– Key Features
• Direct input signal conditioning for eight independent channels
• Configurable measurement ranges via SCP selection
• Dual-ported FIFO buffer architecture for efficient data transfer within VXI systems
• Channel-specific signal processing before digitization
• Compatible with high-speed scanning data acquisition workflows
– Typical Applications
• Multi-channel analog data acquisition in automated test systems
• Industrial measurement and control requiring 16-bit resolution
• VXI-based laboratory instrumentation and modular test platforms
• Systems requiring flexible input ranges from millivolt to tens-of-volt levels
– Compatibility & Integration
The E1413-60001 plugs directly into E1413A, E1413B, or E1413C VXI data acquisition modules, with one SCP required per input block. Operates within standard VXI mainframe architecture, enabling integration into larger multi-module test systems with centralized timing and data handling.
