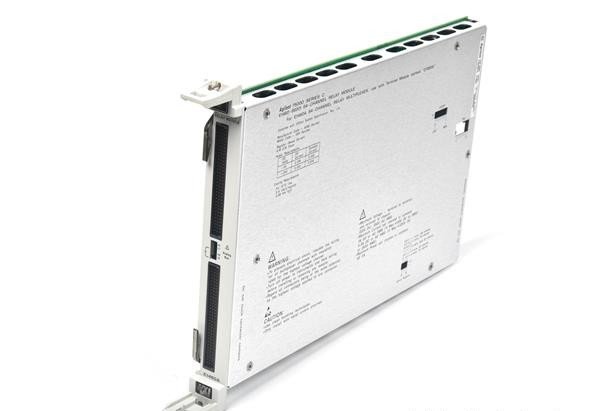

The Keysight E1460A is a C-size, 1-slot VXI relay multiplexer delivering high-density signal routing for automated test systems. Built around latching armature switches, this register-based module configures into multiple topologies: 64 two-wire, 32 three-wire, 32 four-wire, or 128 single-ended channels. Configuration occurs via SCPI commands or jumper settings on the terminal card, enabling flexible deployment across wire harness testing, cable validation, semiconductor characterization, and PCB diagnostics.
Technical Specifications
• Switch Architecture: Eight banks of eight Hi and Lo switches with independent commons; seven programmable control switches; six sets of wire jumpers
• Closed Channel Resistance: < 1.5 Ω (initial), < 3.5 Ω (end of life)
• Thermal Offset: 7 µV typical per channel (differential Hi-Lo)
• Maximum Voltage: 220 Vdc or 250 V rms (any terminal to any other terminal or chassis)
• Maximum Current: 1 A dc/ac rms below 30 Vdc; 0.3 A dc/ac rms below 133 Vdc (per channel common, non-inductive)
• Maximum Power: 40 VA per channel
• Insulation Resistance: 5 × 10⁸ Ω at 25 °C, 40% RH; 5 × 10⁶ Ω at 40 °C, 95% RH
• Bandwidth (–3 dB, 50 Ω source/load): 10 MHz (2-wire), 3 MHz (1-wire)
• Channel-to-Channel Crosstalk: ≤ 90 dB at 100 kHz (2-wire); ≤ 60 dB (1-wire)
• Closed Channel Capacitance: < 650 pF (Hi-Lo, 2-wire); < 700 pF (Lo-Chassis, 2-wire)
– Key Features
• QUIC screw terminal block (16–26 AWG wire) with optional crimp-and-insert terminal block
• Configurable as multiple 1×8 or 1×16 two-wire multiplexers
• Register-based VXI interface (A16 slave only)
• Support for insulation testing and scanning voltmeter configurations
– Typical Applications
• Wire harness and cable testing
• Semiconductor device testing
• Printed circuit board (PCB) testing
• Insulation measurement systems
• Multi-channel voltage scanning
– Compatibility & Integration
Connects via P1 and P2 VXI connectors. Integrates into VXI mainframes supporting register-based slave modules.
