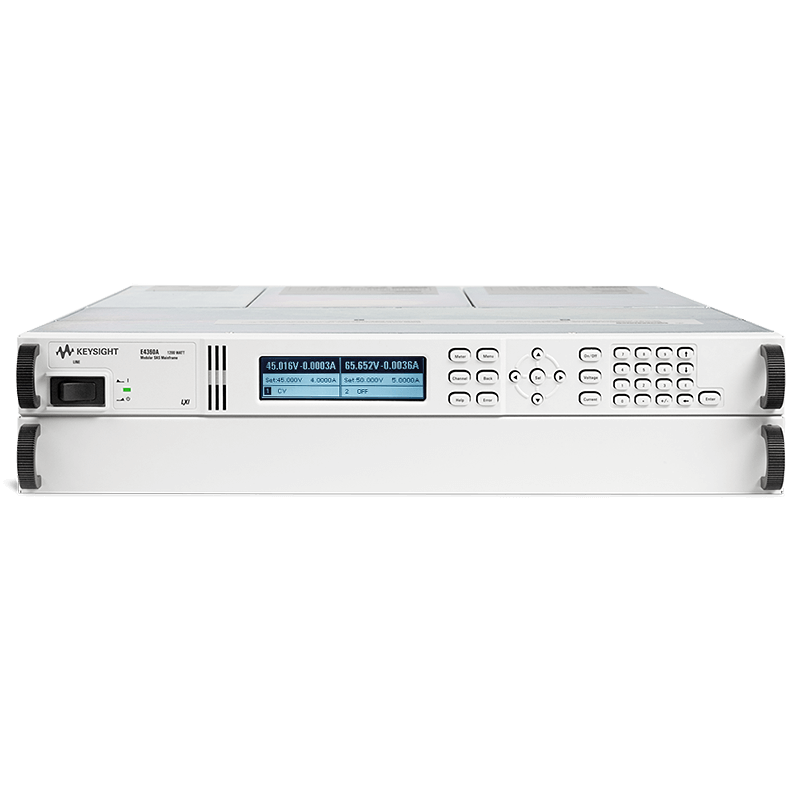

The Keysight E4366A is a configurable Solar Array Simulator (SAS) mainframe that accepts up to two E436xA DC power modules to accurately replicate solar array output characteristics. This 2U-height system delivers fast I-V curve simulations across varying environmental conditions, making it essential for spacecraft power system validation, solar panel qualification, and eclipse/thermal transient testing. The modular architecture accommodates multiple DC sources in a compact footprint while standard interfaces—LAN, USB, and GPIB—enable remote operation and integration into automated test environments.
Technical Specifications
System Architecture
• Mainframe: Keysight E4360A SAS Mainframe
• Module capacity: Up to two E436xA DC power modules
• Form factor: 2U height
Power Output (E4362A Module Example)
• Power: 600 W
• Voltage range: 0–120 V
• Current range: 0–5 A
Programming Accuracy (E4362A, Fixed Mode at 22°C ±5°C)
• Voltage: 0.075% + 20 mV
• Current: 0.2% + 10 mA
Ripple & Noise (E4362A, 20 Hz to 20 MHz)
• Voltage (Simulator/Table Mode): 24 mV rms, 195 mV p-p
• Voltage (Fixed Mode): 24 mV rms, 150 mV p-p
• Current (Fixed Mode): 2.5 mA rms, 19 mA p-p
– Key Features
• Dynamic I-V curve simulation supporting real-time environmental condition changes
• I-V curve generation from four key parameters (Voc, Isc, Vmp, Imp) or user-defined tables
• Multi-output control: Up to 100 outputs per function call via 14360A System Control Tool
• Dual-module configuration for parallel testing or redundant power paths
– Typical Applications
• Spacecraft power bus validation and eclipse simulation
• Solar panel thermal and aging characteristic testing
• DC power supply transient response verification
• Multi-source power architecture development
– Compatibility & Integration
• Designed for E4360A SAS Mainframe
• Accepts all E436xA series DC power modules
• Standard interfaces: LAN, USB, GPIB
• Controlled via included 14360A System Control Tool software
