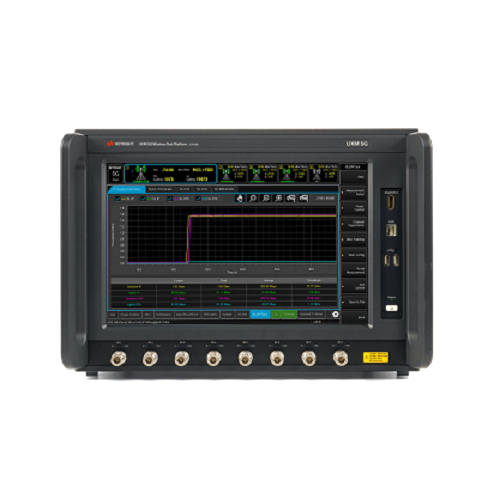

The Keysight E7515E is an economy-class 5G wireless test platform engineered for RF characterization and protocol validation of wireless devices. It delivers signaling tests, network emulation, and RF measurements across a wide frequency spectrum, supporting 5G NR signaling formats alongside legacy technologies. The instrument provides accurate, repeatable measurements essential for R&D, manufacturing, and quality assurance environments.
Technical Specifications
-# RF Architecture
• Up to eight RF ports available for simultaneous use
• All eight ports function as transmit ports (when no receive ports configured)
• Maximum four RF ports operate as receive ports concurrently
• RFIO board routes front-panel RF ports (RF 1–8) to internal source and analyzer modules
-# Operating Range
• Frequency coverage: 380 MHz to 6 GHz
• Input power: 100/120/220/240 VAC nominal, 50/60 Hz
• Power consumption: Up to 1400 W (fully loaded)
• Operating temperature: 10 to 40 °C
• Storage temperature: −40 to 70 °C
-# Physical & Connectivity
• Dimensions (without feet/handles): 309 mm × 436 mm × 554 mm
• Weight: 42.4 kg
• Dual 1 Gbps LAN ports (front and rear panels)
– Key Features
• 5G NR signaling and protocol compliance testing
• Multi-technology support via network emulation
• Simultaneous multi-port RF stimulus and measurement
• Flexible transmit/receive port configuration
– Typical Applications
• 5G device RF characterization and validation
• Protocol compliance verification
• Network signaling and functional performance testing
• Device manufacturing test and quality assurance
– Compatibility & Integration
The E7515E is a cost-optimized variant of the UXM 5G platform. It omits certain internal circuit boards present in the E7515B, resulting in reduced functionality compared to the full-featured UXM platform. RF port usage and signaling capabilities differ from higher-specification models.
