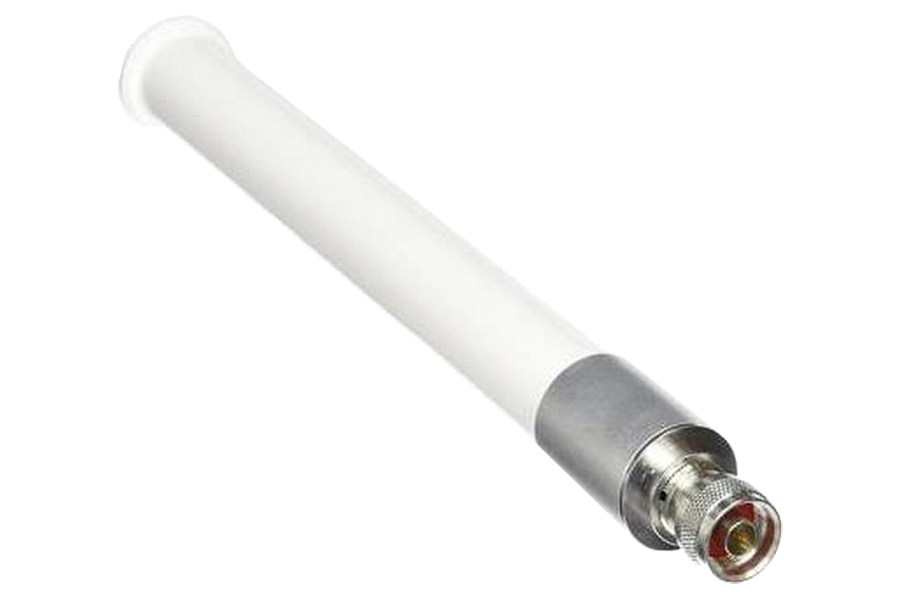

The Cisco AIR-ANT2547V-N is a dual-band omnidirectional antenna designed for Cisco Aironet access points, operating across the 2.4 GHz and 5 GHz frequency bands. This antenna is engineered to provide broad wireless coverage in indoor and outdoor environments, making it suitable for applications requiring a wide coverage area. Its omnidirectional radiation pattern ensures 360-degree horizontal coverage, facilitating even signal distribution.
### Technical Specifications
* **Antenna Type:** Omnidirectional colinear array
* **Operating Frequency Range:**
* 2400–2483 MHz
* 5150–5875 MHz
* **2:1 VSWR Bandwidth:**
* 2400–2483 MHz
* 5150–5875 MHz
* **Nominal Input Impedance:** 50 Ohms
* **Gain:**
* 2.4 GHz: 4 dBi
* 5 GHz: 7 dBi
* **Polarization:** Linear
* **E-plane 3-dB Beamwidth:**
* 2.4 GHz: 30°
* 5 GHz: 14°
* **H-plane 3-dB Bandwidth:** Omni-directional
* **Connector Type:** N-Male
* **Dimensions:**
* Length: 11.1 inches (28.2 cm)
* Diameter: 1.25 inches (3.17 cm)
* **Weight:** 6.0 oz. (170.0 g)
* **Operating Temperature Range:**
* -40°F to 185°F (-40°C to 85°C)
* -22°F to 185°F (–40°C to 85°C)
* -40–185°F(-40–85°C)
* **Environmental Ratings:**
* Ingress Protection: IP66 and IP67 rated
* **Wind Ratings:**
* Operational: Up to 100 mph (161 kph)
* Survival: Up to 165 mph (265 kph)
### Physical Characteristics
* **Mounting:** Designed for direct mounting to Cisco Aironet access points or mast mounting with a separately sourced U-bolt bracket.
* **Materials:** Resistant to the full range of outdoor environments, with drainage holes located at the base and top of the antenna.
### Compatibility
* **Access Point Compatibility:** Compatible with Cisco Aironet Outdoor Access Points that operate in the 2.4 GHz and 5 GHz frequency bands, such as the Cisco Aironet 1550 Series. It can be utilized on specific ports of access points like the IW9167EH.
