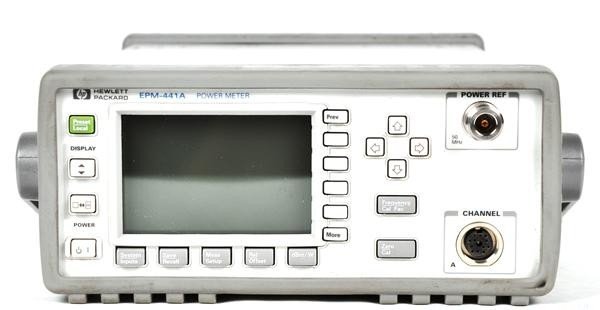

The Agilent/Keysight EPM-441A is a single-channel programmable power meter engineered for precise average power measurements across demanding RF and microwave applications. This benchtop and ATE-integrated instrument delivers absolute accuracy of ±0.02 dB (logarithmic) and ±0.5% (linear), with dynamic ranges up to 90 dB depending on sensor selection. Fast measurement capability—up to 200 readings per second over GPIB with ECP/E-series sensors—enables efficient production testing and characterization workflows.
Technical Specifications
Measurement Range & Accuracy
• Frequency: 9 kHz to 110 GHz (sensor dependent); specific ranges include 100 kHz to 50 GHz and 75 GHz to 110 GHz
• Power measurement: −70 dBm to +44 dBm (100 pW to 25 W); sensor-dependent variations include −70 dBm to +20 dBm for select ECP models
• Instrumentation absolute accuracy: ±0.02 dB (log), ±0.5% (linear)
• Instrumentation relative accuracy: ±0.04 dB (log), ±1.0% (linear)
• Dynamic range: up to 90 dB (ECP series), up to 80 dB (E9300 series), up to 50 dB (8480 series)
• Power reference: 1.00 mW (0.0 dBm), factory calibrated to ±0.7%, traceable to NIST
Display & Resolution
• High-resolution LCD with LED backlighting and adjustable contrast
• Selectable display units: absolute (Watts or dBm), relative (percent or dB)
• Resolution: 0.001 dB in logarithmic mode; 1–4 significant digits in linear mode
• Ten instrument configurations storable and recallable
– Key Features
• No range-switching delays with 8480 series sensors; single fast-range switch point with ECP/E-series sensors
• Measurement speed up to 2× faster than HP 437B using 8480 series power sensors
• SCPI standard programming with HP-IB (IEEE 488.2) interface; code compatible with HP 437B
• RS-232 and RS-422 serial interfaces available on ‘B’ model variants
– Typical Applications
• Benchtop RF power characterization
• Automatic test equipment (ATE) system integration
• Production and validation testing for RF/microwave components
– Compatibility & Integration
Full compatibility with 8480 series, ECP series, and select E9300 series power sensors. Integration into existing test automation environments via GPIB or serial interfaces. Front and rear bumpers protect the instrument during benchtop and rack deployment. Dimensions: 212.6 mm W × 88.5 mm H × 348.3 mm D; weight: 4 kg.
