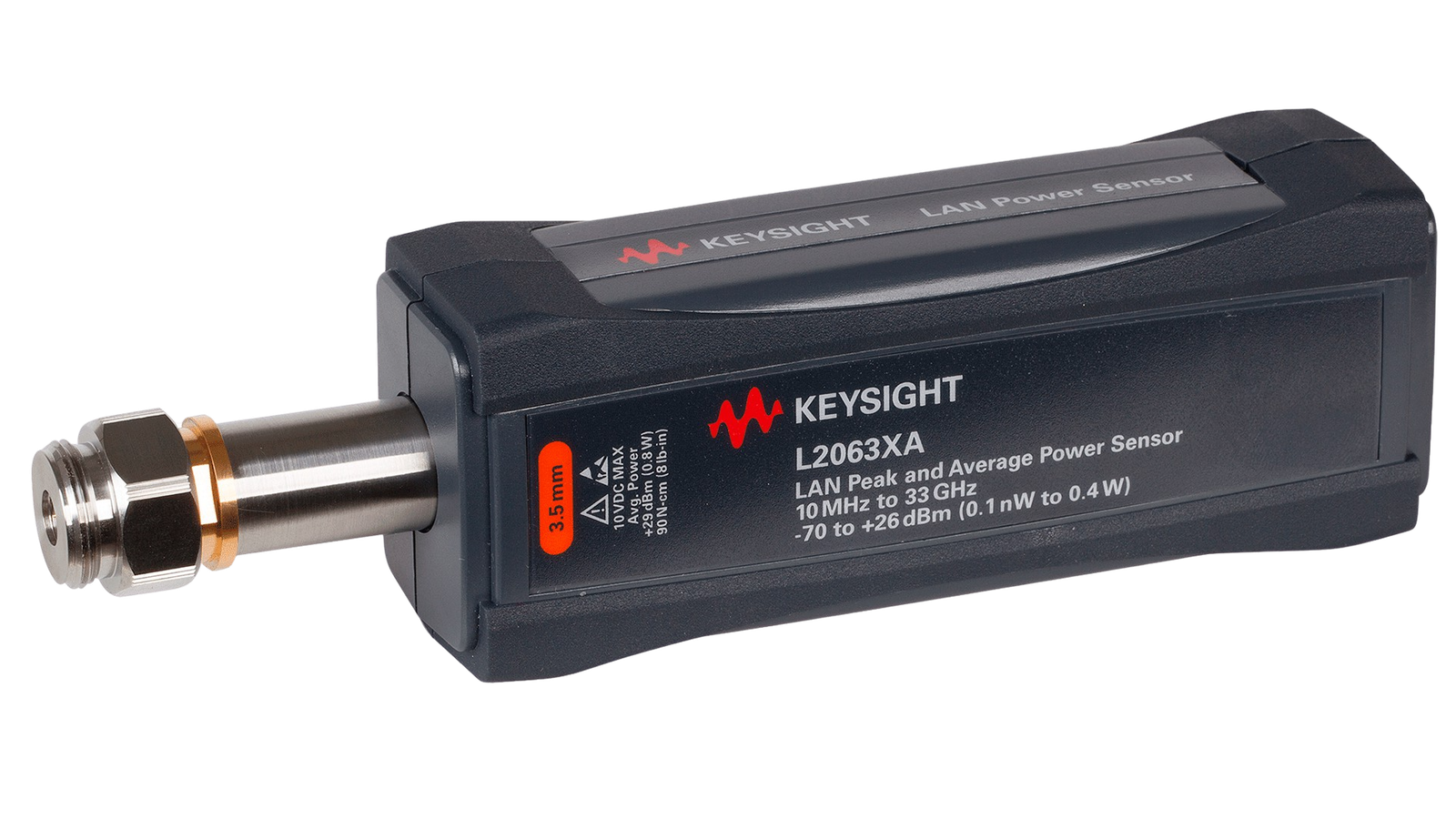

The Keysight L2063XA is a LAN-connected wide dynamic range power sensor delivering simultaneous peak and average power measurements across microwave and millimeter-wave frequencies. Engineered for R&D, validation, and production test environments, it captures fast-changing signal behavior with zero dead time and measurement rates to 50,000 readings per second, while internal calibration functions minimize measurement uncertainty.
Technical Specifications
• Frequency Range: 10 MHz to 33 GHz
• Power Range: −70 dBm to +26 dBm
• Measurement Speed: Up to 50,000 readings per second (real-time); variable sampling to 1 MSa/s
• Memory Depth: 1 MS (1 million samples)
• Dead Time: Zero dead time for continuous pulse capture
• RF Connector: 3.5 mm (male)
• Dimensions: 6.65 in. L × 1.88 in. W × 1.41 in. H; 0.66 lbs
• Interface: Ethernet (LAN) with built-in trigger I/O for external synchronization and daisy-chain configurations
– Key Features
• Peak and average power measurements with time-selectivity for full dynamic range averaging
• Zero dead time ensures no signal loss during high-speed pulse and modulated signal capture
• Internal zero and automatic calibration reduce measurement uncertainty without manual intervention
• TTL trigger output on every measurement event for synchronized multi-sensor test setups
• Signal presets optimized for radar, DME, GSM, EDGE, WCDMA, WLAN, and LTE modulation formats
• Deep memory (1 MS) enables extended data logging without live streaming overhead
– Typical Applications
• Pulsed RF and radar power characterization
• Wireless standards validation (cellular, Wi-Fi, aviation)
• Production testing and quality assurance with real-time throughput
• Research and development requiring high measurement density and low latency
– Compatibility & Integration
Operated remotely via Ethernet and controlled through Keysight BenchVue software, including the BV0007B Power Meter/Sensor Control and Analysis app. Supplied with 5 ft LAN cable, two BNC-to-SMB trigger cables (50 Ω, 1.5 m each), and calibration certificate.
