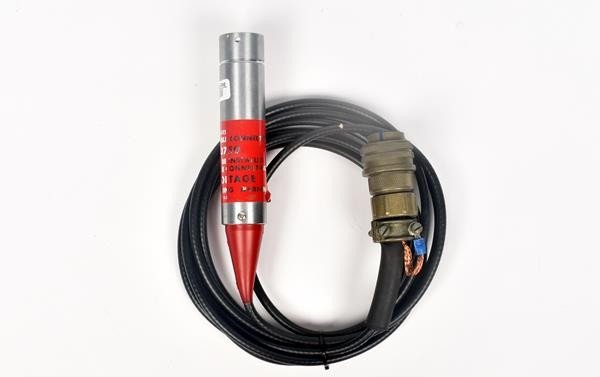

The Agilent/Varian 924-0750 is an external side mating connector and cable assembly engineered for high-voltage DC distribution in vacuum system applications. This non-bakeable cable connects external feedthrough interfaces to ion pump controllers and related instrumentation, delivering rated voltages with safety and electrical integrity across extended cable runs.
Technical Specifications
• Voltage Rating: 12 kV DC maximum
• Current Rating: 10 A maximum
• Cable Length: 12 ft (3.6 m)
• Body Material: Stainless steel
• Connector Type: External side mating
• Bakeout Capability: Non-bakeable
– Key Features
• Stainless steel construction for vacuum compatibility and durability
• Rated for high-voltage DC operation up to 12 kV
• 10 A current capacity supporting standard feedthrough loads
• Extended 12 ft cable length accommodates larger system geometries
• External connector interface for field-side termination
– Typical Applications
This cable assembly interfaces with high-voltage feedthroughs in ion pump and vacuum system configurations. Primary use cases include connection between external vacuum chambers and ion pump controllers, as well as power distribution to high-voltage instrumentation requiring DC supplies in the kilovolt range.
– Compatibility & Integration
The 924-0750 mates with Agilent/Varian high-voltage feedthrough models including 954-50006, 954-5143, 954-5119, and 959-5120. These feedthroughs are rated to 12 kV DC and available with stainless steel skirts or Mini-ConFlat® and 2 ¾” ConFlat flanges. The cable integrates into ion pump systems paired with IPCMini and 4UHV controllers, as well as legacy platforms including MidiVac, MiniVac, and DUAL ion pump controllers. Related high-voltage cable assemblies (924-0741, 924-0730) support complementary pump and controller architectures.
